Transfer Case Front Oil Seal: Replacement

(See REMOVAL  ).

1. Using SST, remove the transfer case front oil seal from the transfer case.

   SST 09308-00010

   NOTE: Do not damage the oil seal contact surface on the case.

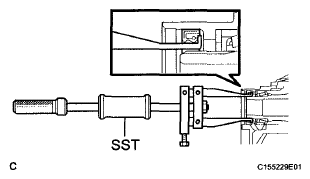

   Fig 1: Removing Transfer Case Front Oil Seal From Transfer Case

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, drive in a new transfer case front oil seal into the transfer case until it reaches the position shown in the illustration.

   SST 09316-60011 (09316-00011)

   Drive in depth:

   9.7 to 10.3 mm (0.3819 to 0.4055 in.)

   NOTE: Do not tilt the oil seal during installation.
2. Apply a small amount of MP grease to the lip of the oil seal.

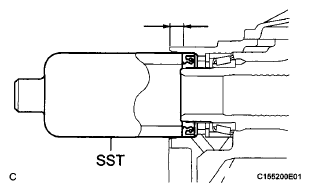

   Fig 2: Installing Transfer Case Front Oil Seal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(See INSTALLATION  )
