Section 5 (Engine Cooling System (2AZ-FE)): Radiator: Components

WARNING: This page is about a different variant/trim than selected.

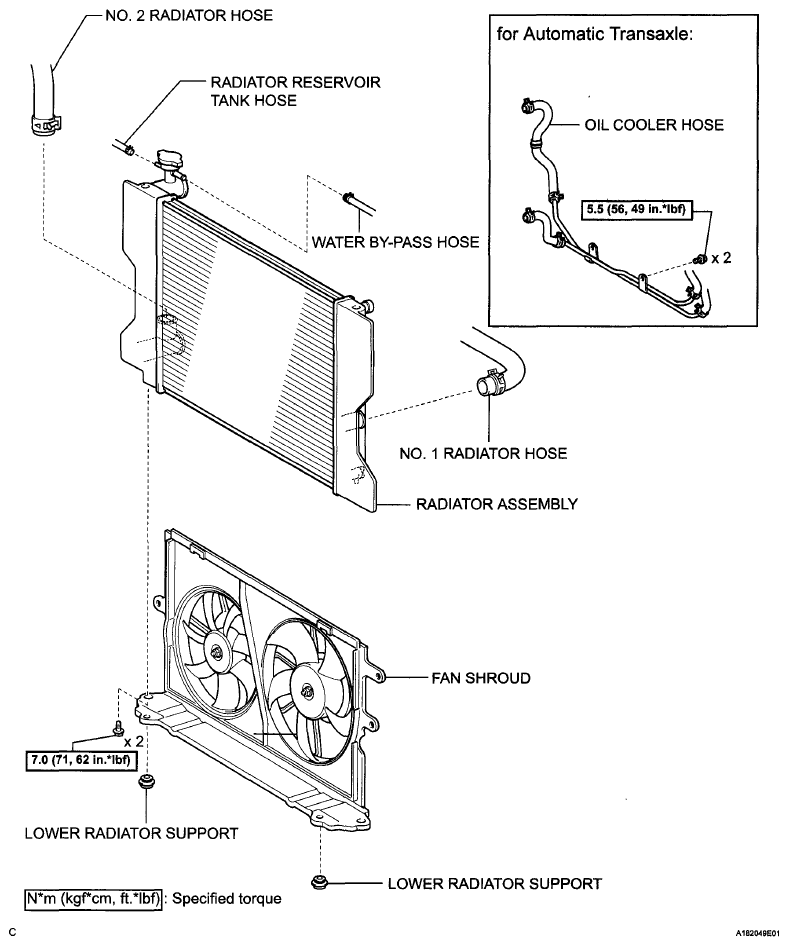

Fig 1: Identifying Radiator Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

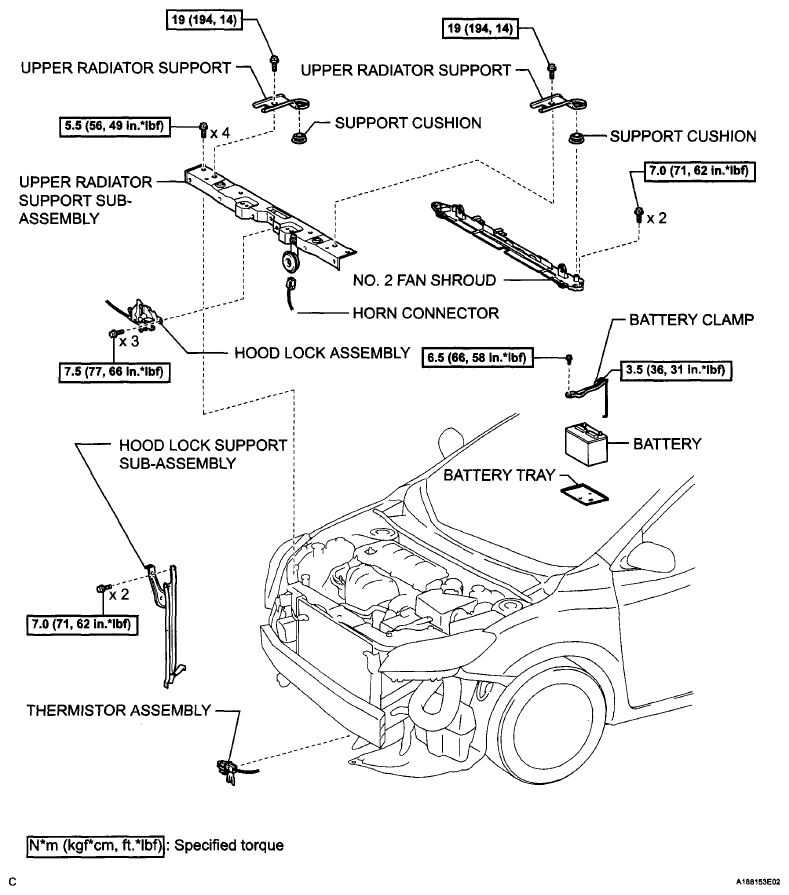

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 3)

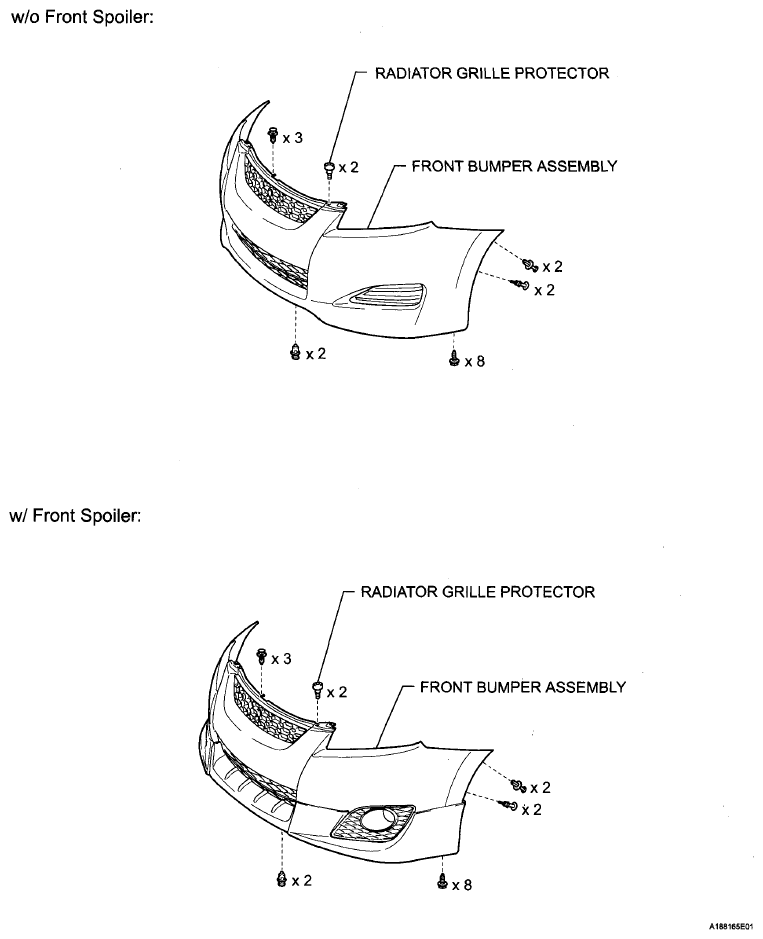

Fig 3: Radiator Replacement Components With Torque Specifications (3 Of 3)
