Section 6 (Charging System (2AZ-FE)): Generator: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL GENERATOR ASSEMBLY
1. Install the wire harness clamp bracket with the bolt.
  Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

  Fig 1: Locating Wire Harness Clamp Bracket Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the generator assembly with the 2 bolts.
  Torque: Bolt A

  21 N*m (215 kgf*cm, 16 ft.*lbf)

  Bolt B

  52 N*m (530 kgf*cm, 38 ft.*lbf)

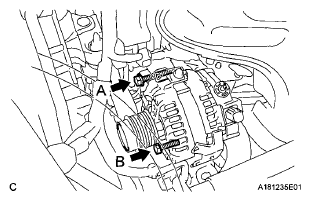

  Fig 2: Locating Generator Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the generator connector and 2 wire harness clamps.
4. Install the wire harness to terminal B with the nut and install the terminal cap.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
INSTALL V-RIBBED BELT (See INSTALLATION )
INSTALL ENGINE UNDER COVER RH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Fig 3: Identifying Terminal Cap, Nut, Generator Connector And Harness Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
