CANISTER (for 2WD): Components

WARNING: This page is about a different variant/trim than selected.

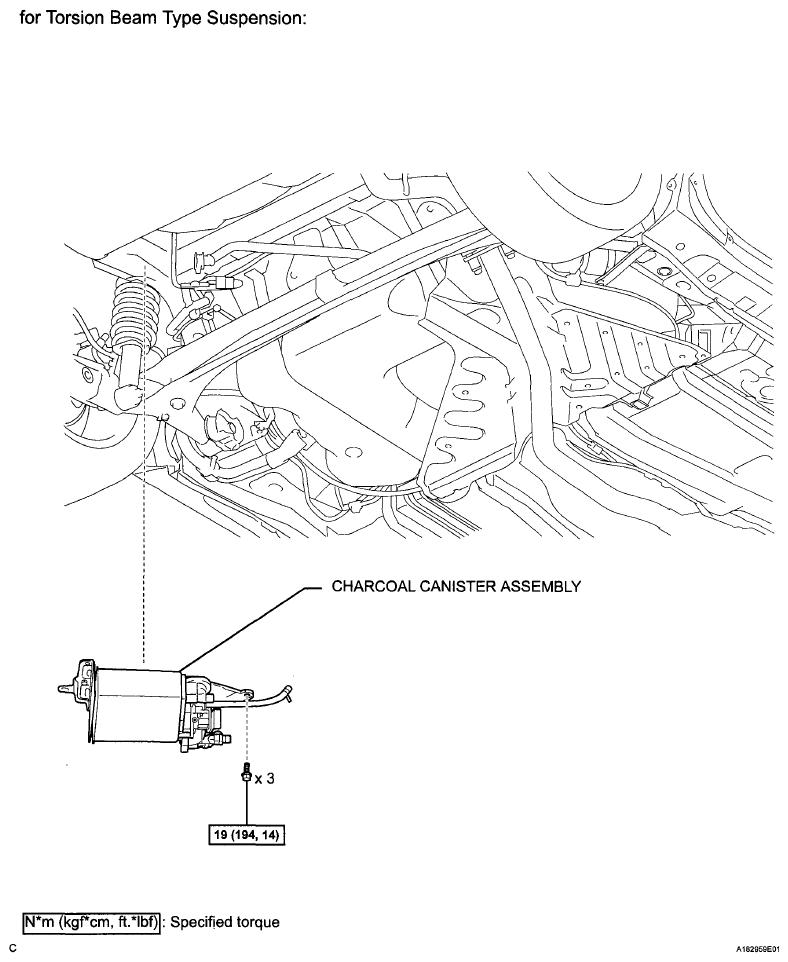

Fig 1: Identifying Canister Components - Torsion Beam Type Suspension (For 2WD)
G06042445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

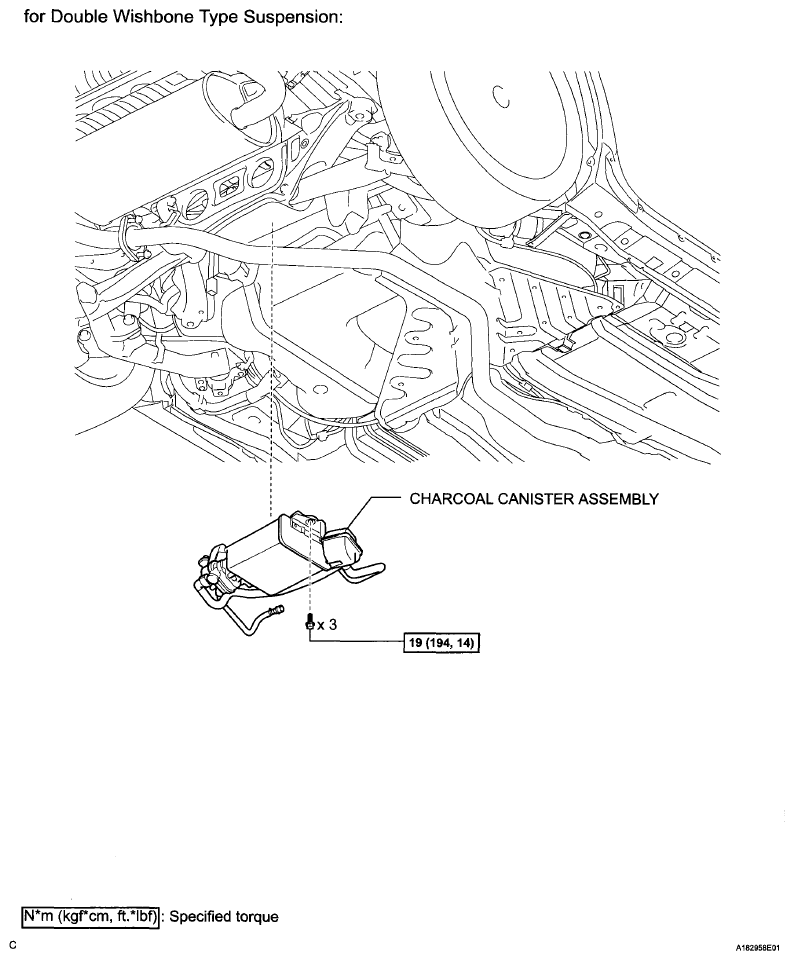

Fig 2: Identifying Canister Components - Double Wishbone Type Suspension (For 2WD)
G06042446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
