CANISTER (for 2WD): Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL CHARCOAL CANISTER ASSEMBLY (for Double Wishbone Type Suspension)
1. Install the charcoal canister assembly with the 3 bolts.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

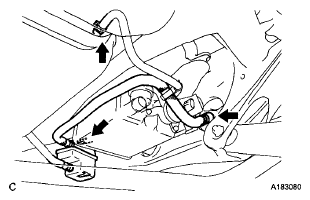

  Fig 1: Locating Charcoal Canister Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the purge line.
3. Connect the charcoal canister filter sub-assembly to the charcoal canister.

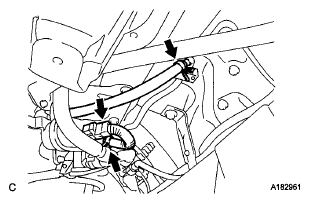

  Fig 2: Locating Purge Line
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the vapor pressure sensor connector.
5. Connect the fuel tank vent hose to the charcoal canister assembly.

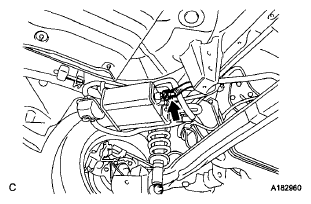

  Fig 3: Locating Vapor Pressure Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CHARCOAL CANISTER ASSEMBLY (for Torsion Beam Type Suspension)
1. Install the charcoal canister assembly with the 3 bolts.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

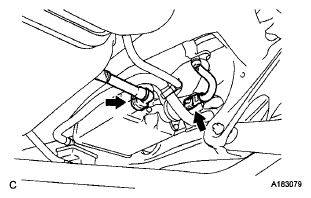

  Fig 4: Locating Charcoal Canister Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the the charcoal canister filter sub-assembly to the charcoal canister.

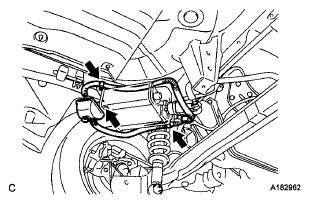

  Fig 5: Locating Charcoal Canister Filter Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the purge line hose.
4. Connect the wire harness clamp.
5. Connect the vapor pressure sensor connector.

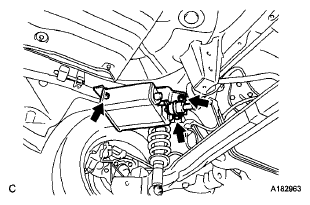

  Fig 6: Locating Purge Line Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the fuel tank vent hose to the charcoal canister.

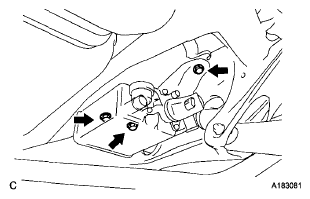

  Fig 7: Locating Fuel Tank Vent Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CHARCOAL CANISTER ASSEMBLY (for Torsion Beam Type Suspension)
