CANISTER (for 4WD): Components

WARNING: This page is about a different variant/trim than selected.

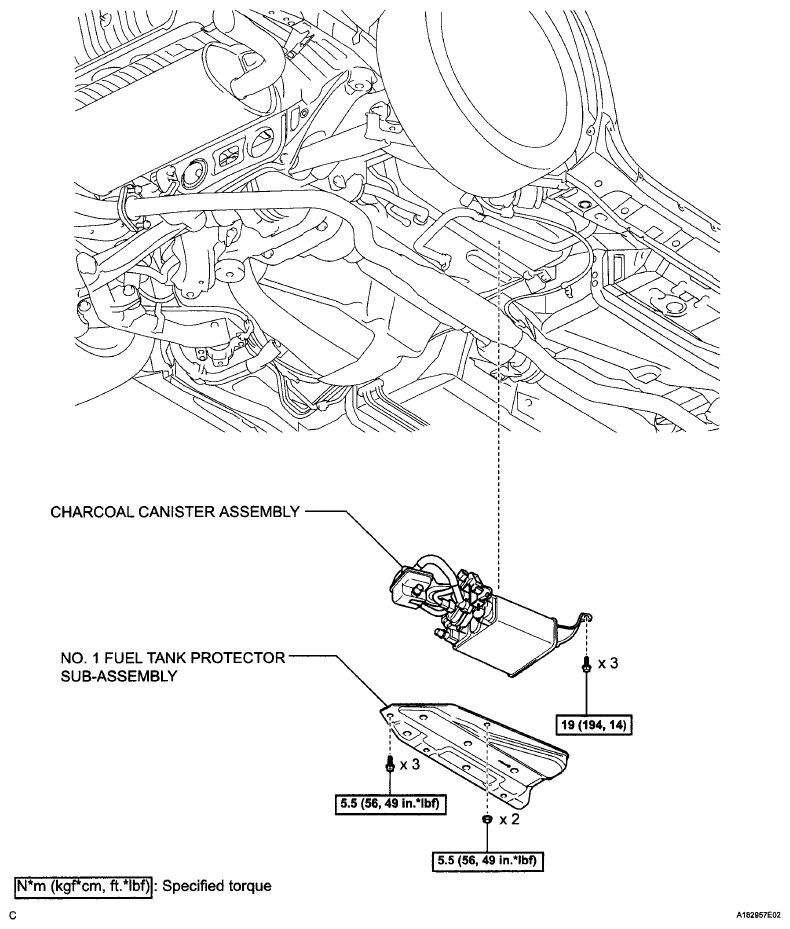

Fig 1: Canister Replacement Components With Torque Specifications (For 4WD)
G06042465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
