CANISTER (for 4WD): Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL CHARCOAL CANISTER ASSEMBLY
1. Install the charcoal canister assembly with the 3 bolts.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

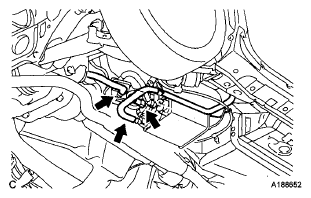

  Fig 1: Locating Charcoal Canister Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel tank vent hose to the charcoal canister.
3. Connect the charcoal canister filter sub-assembly to the charcoal canister.
4. Connect the fuel tank vent hose to the charcoal canister.

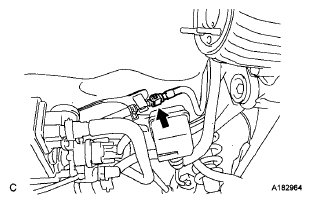

  Fig 2: Locating Fuel Tank Vent Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the purge line hose.
INSTALL NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
1. Install the No. 1 fuel tank protector sub-assembly with the 3 bolts and 2 nuts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

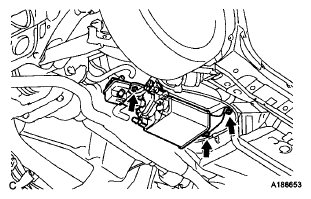

  Fig 3: Locating Purge Line Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
