PCV Valve: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL VENTILATION VALVE SUB-ASSEMBLY
1. Apply adhesive to 2 or 3 threads of the ventilation valve.
  Adhesive:

  Toyota genuine adhesive 1324, three bond 1324 or equivalent

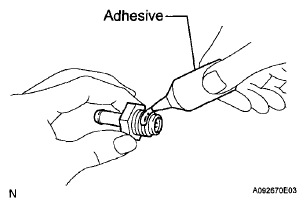

  Fig 1: Applying Adhesive To 2 Or 3 Threads Of Ventilation Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 22 mm deep socket wrench, install the ventilation valve.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  Fig 2: Installing Ventilation Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT NO. 2 VENTILATION HOSE
1. Connect the No. 2 ventilation hose.
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
INSPECT FOR OIL LEAK

Fig 3: Locating No. 2 Ventilation Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
