Air Fuel Ratio Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
1. Remove the 4 bolts and the No. 1 exhaust manifold heat insulator.
Fig 1: Locating No. 1 Exhaust Manifold Heat Insulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR FUEL RATIO SENSOR
1. Disconnect the air fuel ratio sensor connector and wire harness clamp.

  Fig 2: Locating Air Fuel Ratio Sensor Connector And Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the air fuel ratio sensor.
  SST 09224-00010

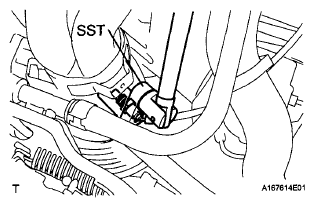

Fig 3: Removing Air Fuel Ratio Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
