Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

HINT:

Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

  1. INSPECT CAMSHAFT POSITION SENSOR (RESISTANCE)
    1. Disconnect the camshaft position sensor connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      1-2 20°C (68°F) 950 to 1250 Ω
    3. Reconnect the camshaft position sensor connector.

    NG: REPLACE CAMSHAFT POSITION SENSOR  (See CAMSHAFT POSITION SENSOR )

    Fig 1: Identifying Camshaft Position Sensor Connector Terminal
    G05386709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (CAMSHAFT POSITION SENSOR - ECM)
    1. Disconnect the camshaft position sensor connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance (Check for Open)

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      B12-1 - B29-99 (G2+) Always Below 1 Ω
      B12-2 - B29-98 (G2-) Always Below 1 Ω

      Standard Resistance (Check for Short)

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      B12-1 or B29-99 (G2+) - Body ground Always 10 kΩ or higher
      B12-2 or B29-98 (G2-) - Body ground Always 10 kΩ or higher
    4. Reconnect the ECM connector.
    5. Reconnect the camshaft position sensor connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (CAMSHAFT POSITION SENSOR - ECM)

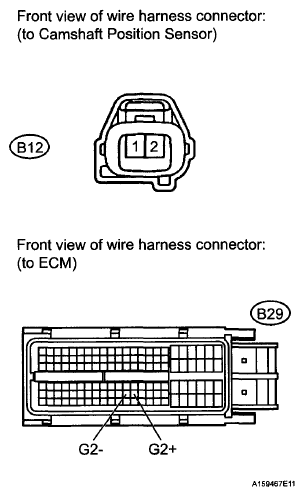

    Fig 2: Identifying ECM Connector Terminal
    G06040072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  3. CHECK SENSOR INSTALLATION (CAMSHAFT POSITION SENSOR)
    1. Check the camshaft position sensor installation.

      OK:

      Sensor is installed correctly  .

    NG: SECURELY REINSTALL SENSOR  (See CAMSHAFT POSITION SENSOR )

    Fig 3: Identifying Camshaft Position Sensor Clearance
    G05413721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  4. CHECK VALVE TIMING  (See INSPECTION PROCEDURE )

    NG: ADJUST VALVE TIMING  (See ENGINE UNIT )

    OK: Go to Next Step

  5. INSPECT CAMSHAFT
    1. Check the teeth of the camshaft.

      OK:

      Camshaft teeth do not have any cracks or deformation  .

    NG: REPLACE CAMSHAFT  (See CAMSHAFT )

    OK: Go to Next Step

  6. REPLACE CAMSHAFT POSITION SENSOR
    1. Replace camshaft position sensor (See CAMSHAFT POSITION SENSOR ).
  7. CHECK WHETHER DTC OUTPUT RECURS
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Clear DTCs (See DTC CHECK / CLEAR ).
    5. Start the engine.
    6. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
    7. Read DTCs.

Result

RESULT REFERENCE

Result Proceed to
No output A
P0340 B

HINT:

If the engine does not start, replace the ECM.

B: REPLACE ECM  (See ECM )

A: END
