DTC P0443 Evaporative Emission Control System Purge Control Valve Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

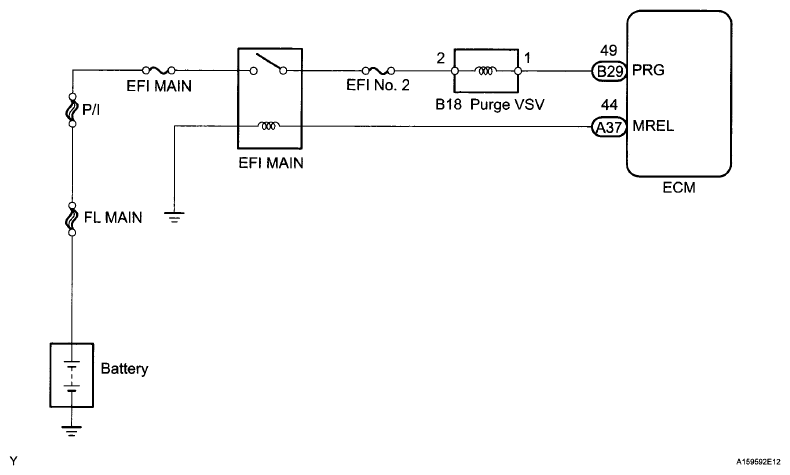

Fig 1: EFI Main And ECM - Wiring Diagram
G06040099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
