Section 9 (Starting System (2AZ-FE)): Starter: Components

WARNING: This page is about a different variant/trim than selected.

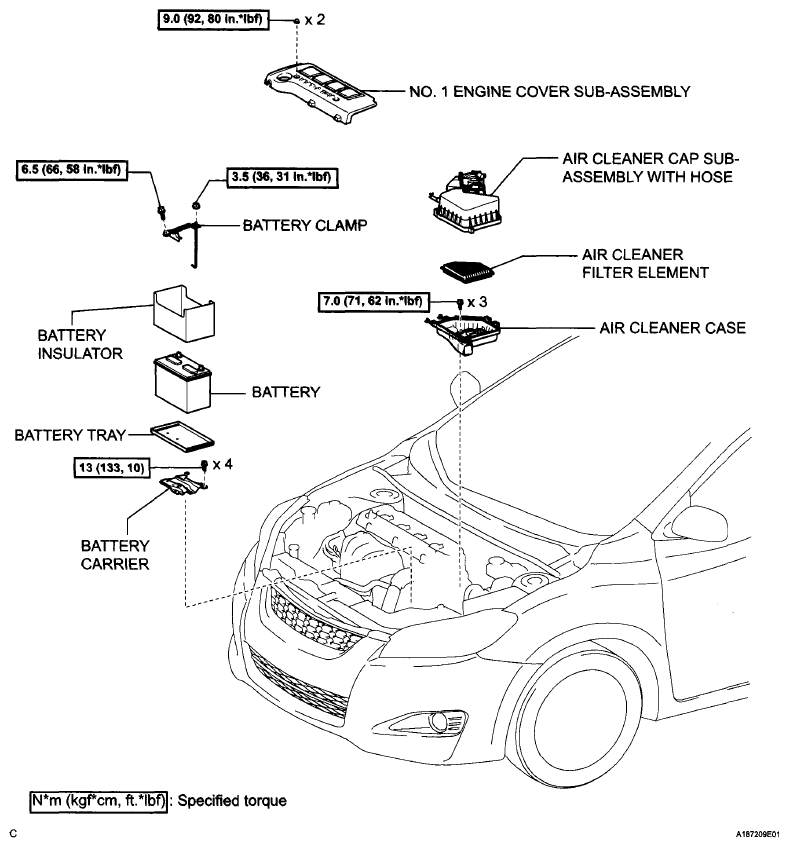

Fig 1: Battery And Air Cleaner Replacement Components With Torque Specifications
G06042900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

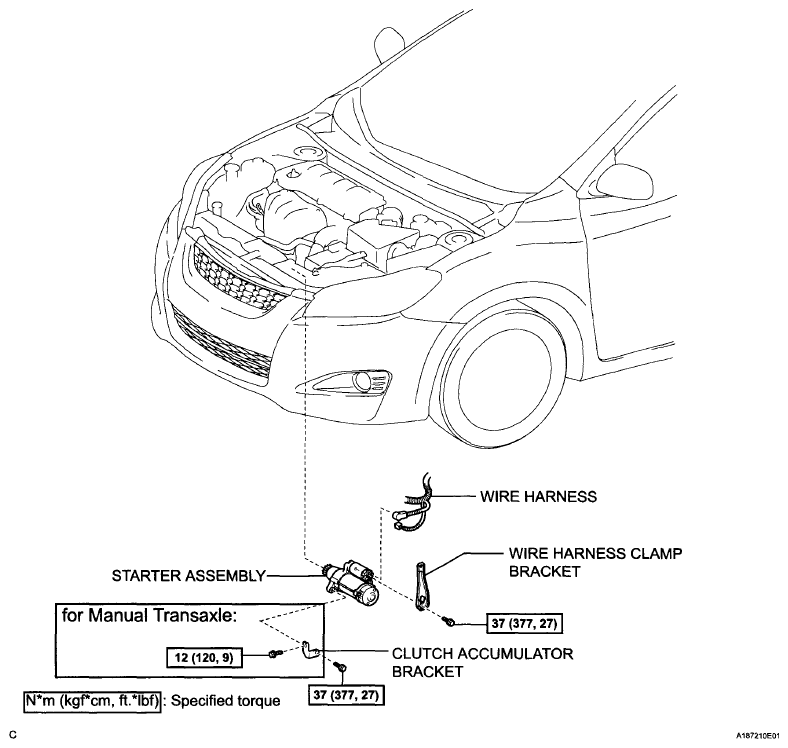

Fig 2: Starter Replacement Components With Torque Specifications
G06042901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

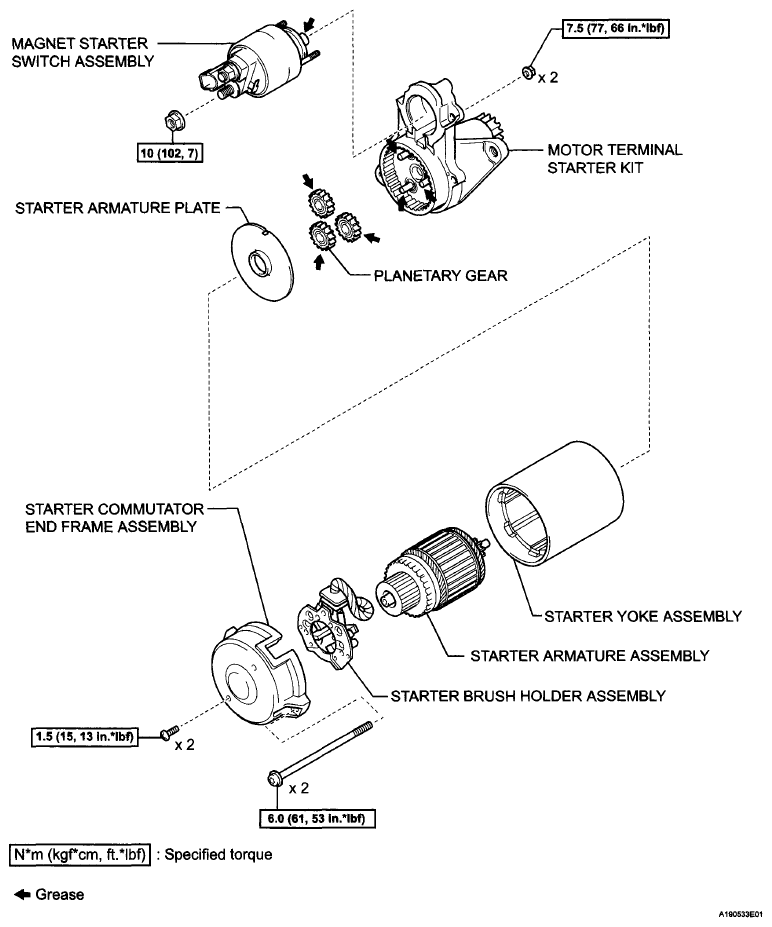

Fig 3: Exploded View Of Starter With Torque Specifications
G06042902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
