Theft Deterrent ECU Assembly Connector End View (E72)

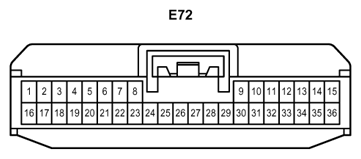

Fig 1: Theft Deterrent ECU Assembly Connector End View (E72)
G08391976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
