Shift Lever: Components

Fig 1: Identifying Shift Lever Components (1 Of 3)
G06043842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

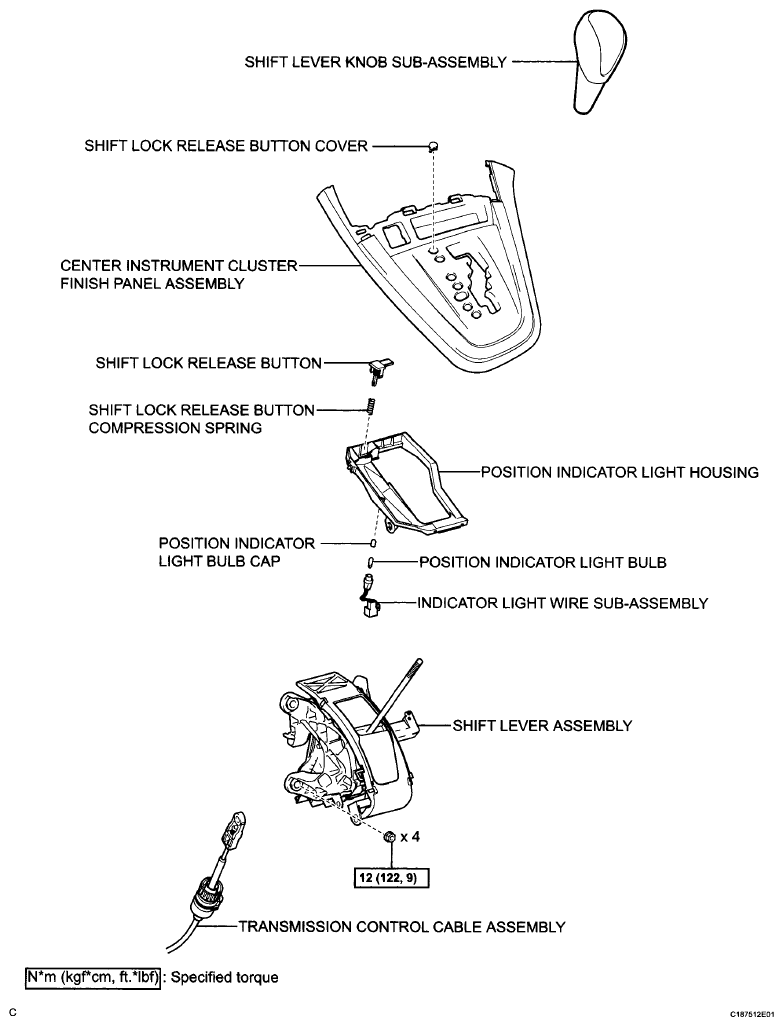

Fig 2: Shift Lever Replacement Components With Torque Specifications(2 Of 3)
G06043198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

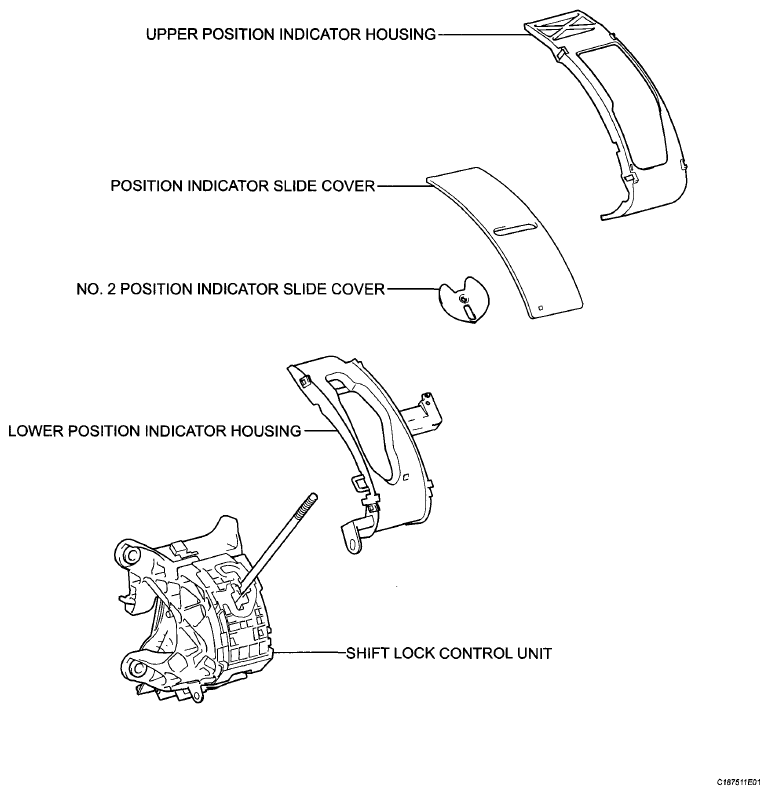

Fig 3: Identifying Shift Lever Components (3 Of 3)
G06043199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
