Yaw Rate Sensor Communication Stop Mode: Wiring Diagram

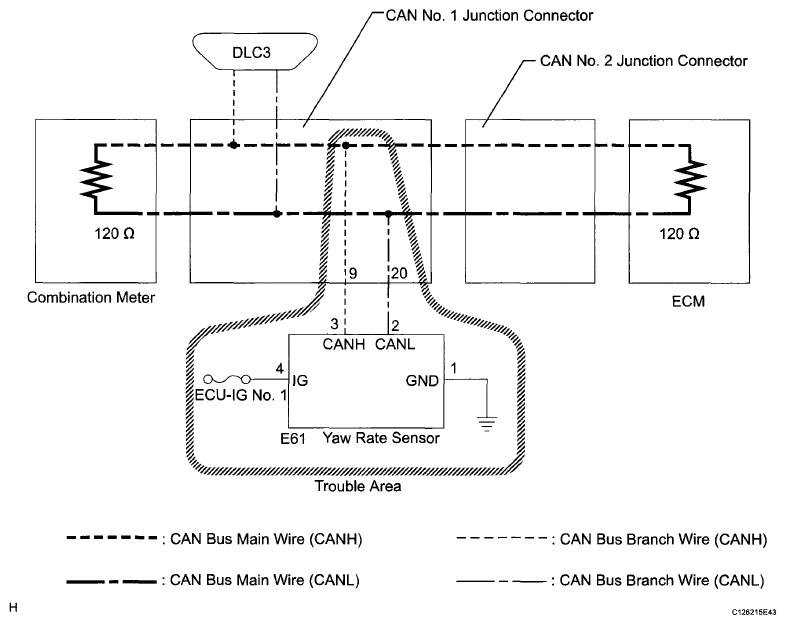

Fig 1: Yaw Rate Sensor Communication - Wiring Diagram
G06036169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
