DTC U1002: (CAN No. 2 BUS) Lost Communication with Gateway Module (Network Gateway ECU); DTC U0114: Lost Communication with 4WD Control ECU: Wiring Diagram

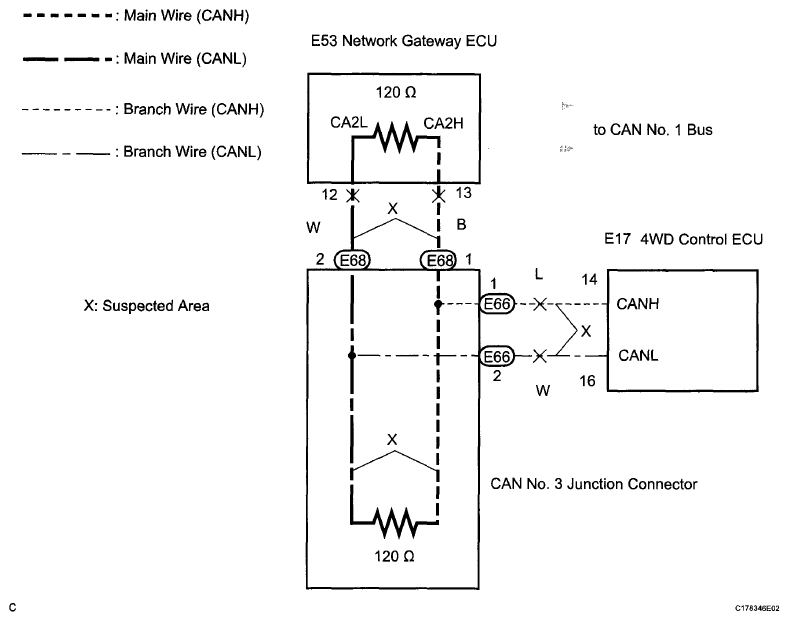

Fig 1: Network Gateway ECU And 4WD Control ECU - Wiring Diagram
G06036142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
