Parts Location

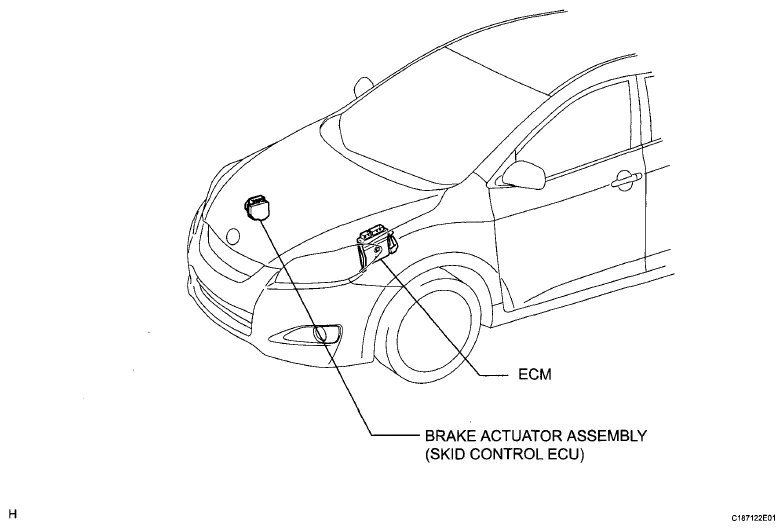

Fig 1: Identifying ECM And Brake Actuator Assembly (Skid Control ECU)
G06036117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

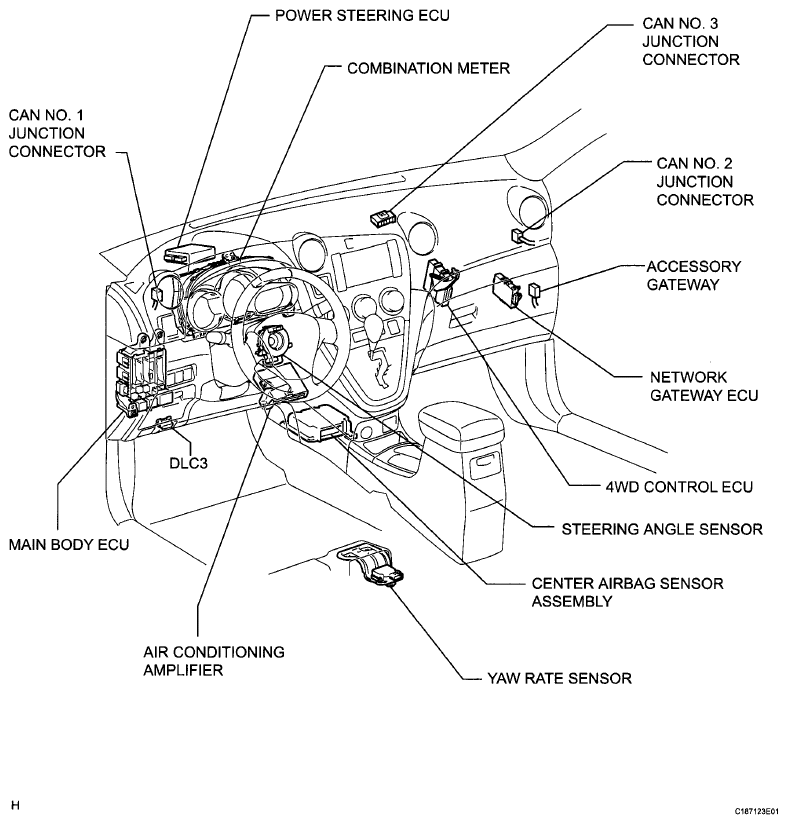

Fig 2: Identifying CAN Communication System Parts Location
G06036118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
