Network Gateway Ecu: Installation

  1. INSTALL NETWORK GATEWAY ECU
    1. Install the network gateway ECU with the bolt.

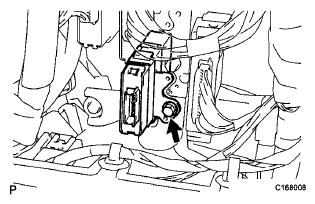

      Fig 1: Locating Network Gateway ECU And Mounting Bolt
      G06036308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.

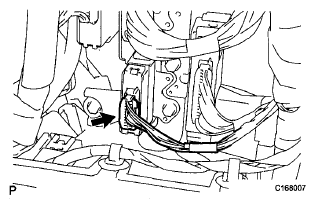

      Fig 2: Locating Network Gateway ECU Connector
      G06036307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
