Clutch Switch: Installation

  1. INSTALL CLUTCH SWITCH (CRUISE CONTROL CANCEL SWITCH ASSEMBLY)
    1. Temporarily install the clutch switch (cruise control cancel switch assembly) with the nut.
    2. Engage the pin and tighten the nut.

      Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)

    3. Connect the connector.

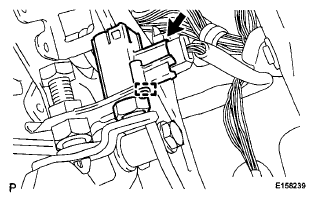

    Fig 1: Locating Clutch Switch Connector And Pin
    G06043053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
