Cruise Control Main Switch: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system (See AIRBAG SYSTEM ).
REMOVE LOWER NO. 3 STEERING WHEEL COVER (See REMOVAL )
REMOVE LOWER NO. 2 STEERING WHEEL COVER (See REMOVAL )
REMOVE STEERING PAD (See REMOVAL )
REMOVE CRUISE CONTROL MAIN SWITCH
1. Remove the 2 screws.
2. Disconnect the connector.

  Fig 1: Locating Cruise Control Main Switch Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the pin and remove the cruise control main switch as shown in the illustration.

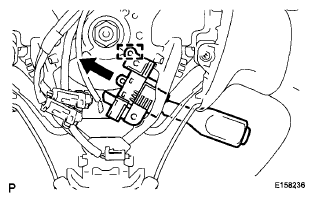

Fig 2: Removing Cruise Control Main Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
