Speaker Circuit: Wiring Diagram

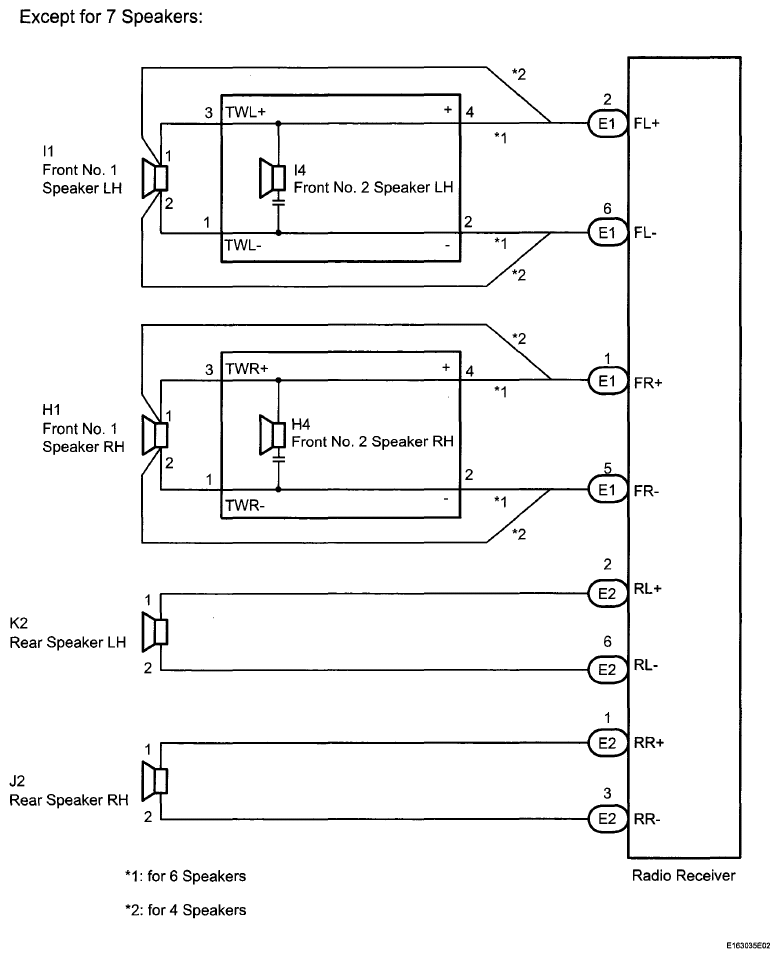

Fig 1: Speaker Circuit - Wiring Diagram (1 Of 3)
G06035712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

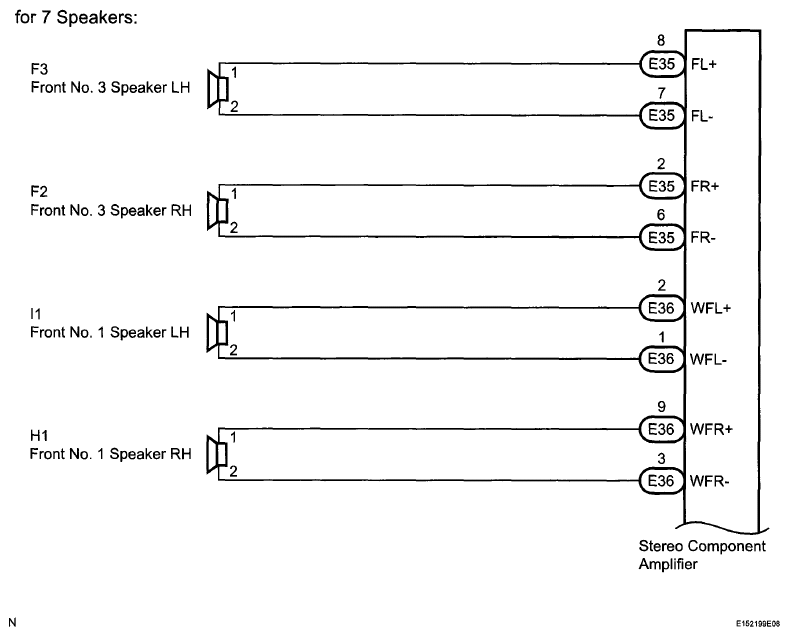

Fig 2: Speaker Circuit - Wiring Diagram (2 Of 3)
G06035713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

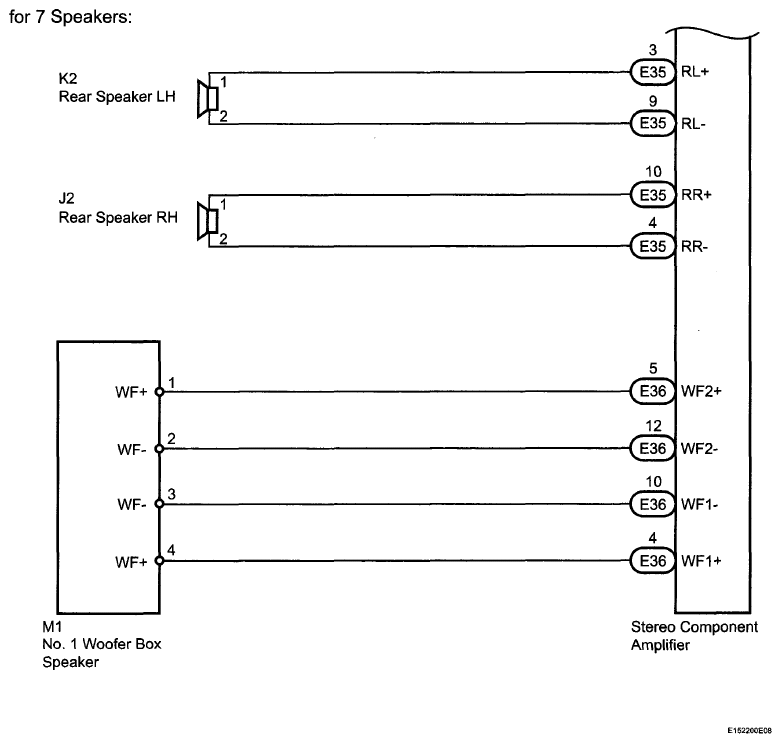

Fig 3: Speaker Circuit - Wiring Diagram (3 Of 3)
G06035714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
