Inspection Procedure

  1. INSPECT STEREO COMPONENT AMPLIFIER
    1. Disconnect the stereo component amplifier connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      E36-6 (GND) - Body ground Always Below 1 Ω
      E36-7 (GND2) - Body ground Always Below 1 Ω
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      E35-1 (+B) - E36-6 (GND) Always 11 to 14 V
      E35-5 (+B2) - E36-6 (GND) Always 11 to 14 V
      E34-12 (ACC) - E36-6 (GND) Ignition switch ACC 11 to 14 V

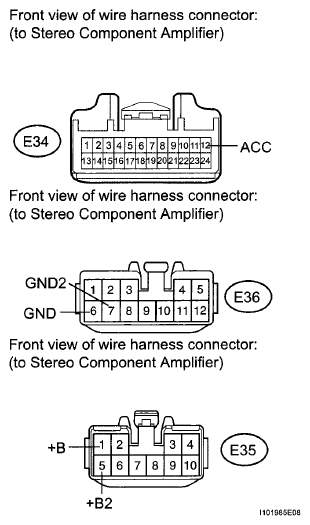

      Fig 1: Identifying E34, E35 And E36 Stereo Component Amplifier Connectors
      G06035750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE  )
