Radio Receiver: Installation

INSTALL RADIO RECEIVER ASSEMBLY
INSTALL NO. 2 RADIO BRACKET
1. Install the No. 2 radio bracket with the 4 screws.

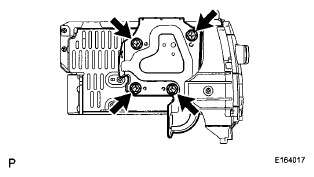

  Fig 1: Locating No. 2 Radio Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 RADIO BRACKET
1. Install the No. 1 radio bracket with the 4 screws.

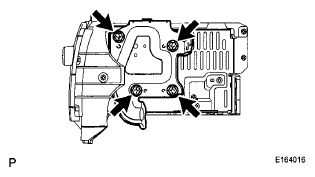

  Fig 2: Locating No. 1 Radio Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET
1. Connect each connector.
2. Install the radio receiver assembly with bracket with the 4 bolts.

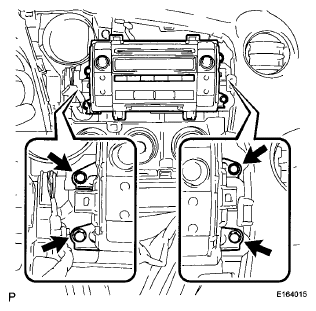

  Fig 3: Locating Radio Receiver Assembly Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
