Steering Pad Switch: Inspection

INSPECT STEERING PAD SWITCH (w/ Steering Pad Switch)

Disconnect the steering pad switch assembly connector.

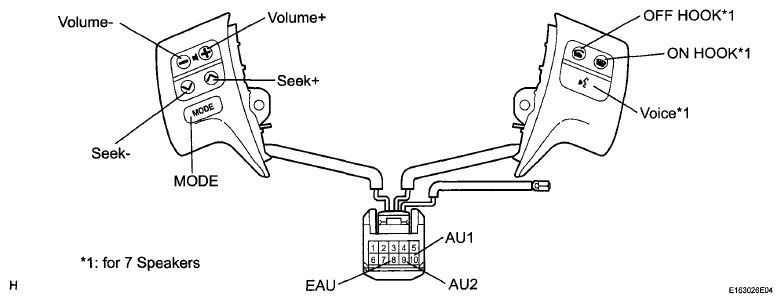

Fig 1: Identifying Steering Pad Switch Assembly Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the values in the table below.

Standard Resistance

RESISTANCE SPECIFIED CONDITION

Tester Connection

Switch Condition

Specified Condition

10 (AU1) - 8 (EAU)

No switch is pushed

95 to 105 kΩ

10 (AU1) - 8 (EAU)

Seek+ switch: pushed

0 to 2.5 Ω

10 (AU1) - 8 (EAU)

Seek- switch: pushed

313.5 to 346.5 Ω

10 (AU1) - 8 (EAU)

Volume+ switch: pushed

959.5 to 1060.5 Ω

10 (AU1) - 8 (EAU)

Volume- switch: pushed

3049.5 to 3370.5 Ω

9 (AU2) - 8 (EAU)

No switch is pushed

95 to 105 kΩ

9 (AU2) - 8 (EAU)

MODE switch: pushed

0 to 2.5 Ω

9 (AU2) - 8 (EAU)

Voice switch: pushed⁽¹⁾

3049.5 to 3370.5 Ω

9 (AU2) - 8 (EAU)

ON HOOK switch: pushed⁽¹⁾

313.5 to 346.5 Ω

9 (AU2) - 8 (EAU)

OFF HOOK switch: pushed⁽¹⁾

959.5 to 1060.5 Ω

⁽¹⁾	for 7 Speakers

If the result is not as specified, replace the steering pad switch assembly.
