Steering Pad Switch: Installation

INSTALL STEERING PAD SWITCH LH
1. Engage the 2 pins and install the steering pad switch LH.
2. Install the screw.

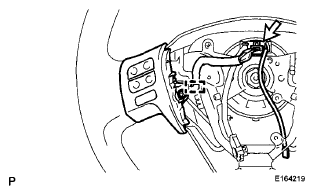

  Fig 1: Locating Steering Pad Switch LH And Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the clamp.
4. Connect the pad switch connector to the spiral cable.

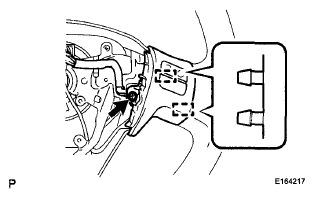

  Fig 2: Identifying Pad Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING PAD SWITCH ASSEMBLY
1. Engage the 2 pins and install the steering pad switch.
2. Install the screw.

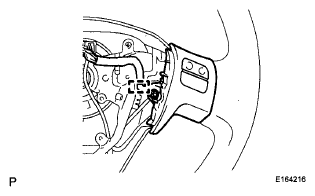

  Fig 3: Locating Steering Pad Switch Pins And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the clamp.

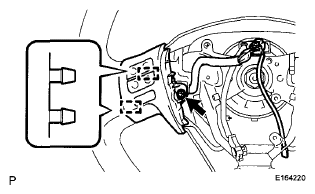

  Fig 4: Identifying Steering Pad Switch Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 2 pins and install the steering pad switch assembly.
5. Install the screw.

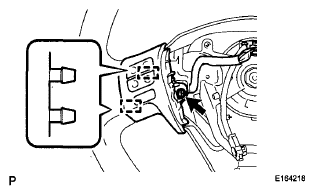

  Fig 5: Locating Steering Pad Switch Pins And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Engage the clamp.
7. Connect the pad switch connector to the spiral cable.

  Fig 6: Locating Pad Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING PAD (See INSTALLATION )
INSTALL LOWER NO. 3 STEERING WHEEL COVER (See INSTALLATION )
INSTALL LOWER NO. 2 STEERING WHEEL COVER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT STEERING PAD (See INSTALLATION )
INSPECT SRS WARNING LIGHT
(See DIAGNOSIS SYSTEM )
