Stereo Jack Adapter Assembly: Installation

  1. INSTALL STEREO JACK ADAPTER ASSEMBLY
    1. Engage the 2 claws to install the stereo jack adapter assembly.

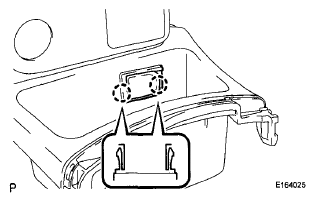

      Fig 1: Identifying Stereo Jack Adapter Assembly Claws
      G06035825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 SWITCH HOLE BASE  (See INSTALLATION )
  3. INSTALL FRONT UPPER CONSOLE BOX  (See INSTALLATION )
