Navigation Antenna: Components

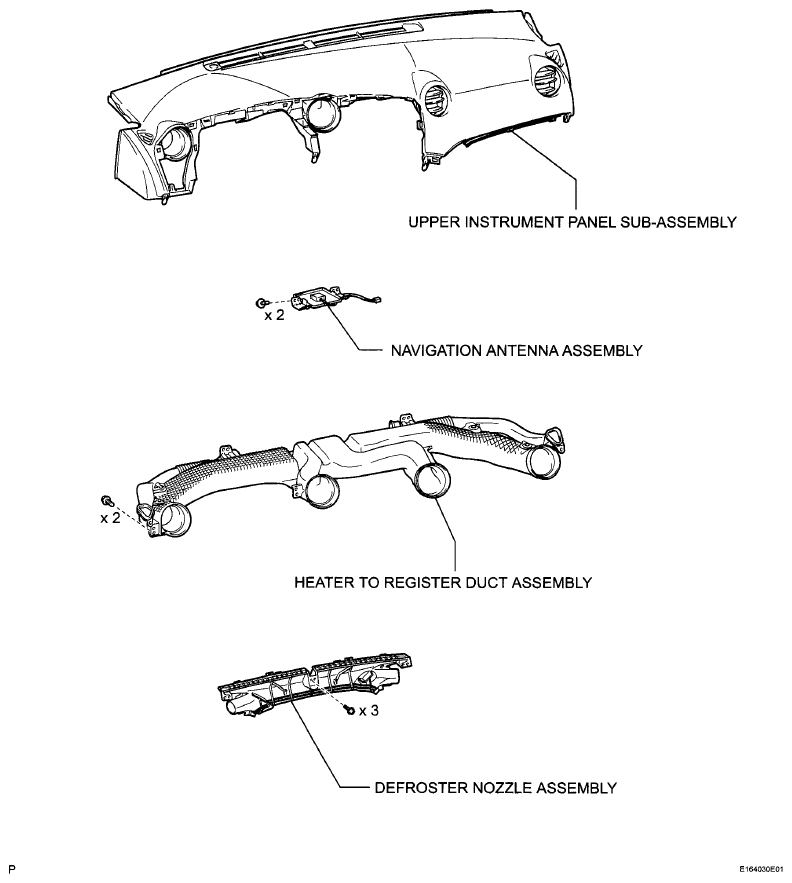

Fig 1: Identifying Navigation Antenna Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
