Front Wiper Motor: Components

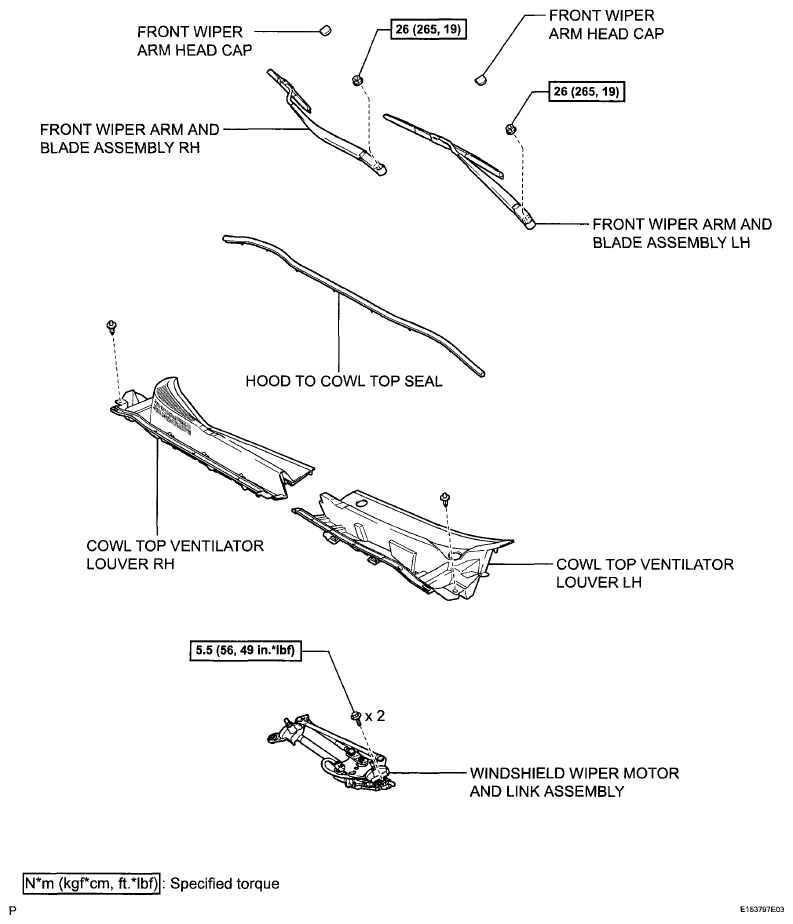

Fig 1: Front Wiper Motor Replacement Components With Torque Specifications (1 Of 2)
G06038555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

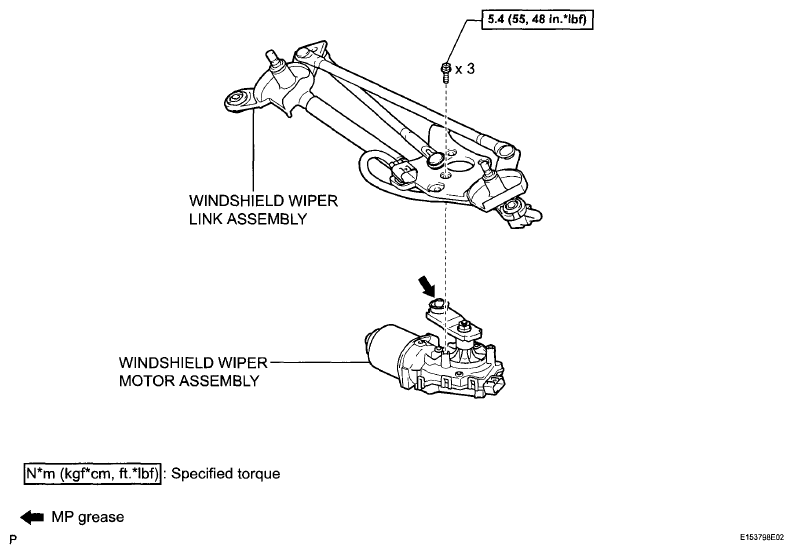

Fig 2: Front Wiper Motor Replacement Components With Torque Specifications (2 Of 2)
G06038556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
