Washer Level Warning Switch: Installation

  1. INSTALL LEVEL WARNING SWITCH ASSEMBLY
    1. Install the level warning switch assembly.
    2. Connect the connector.

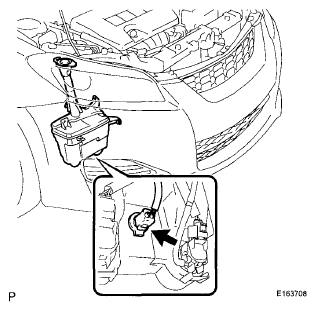

    Fig 1: Locating Level Warning Switch Assembly Connector
    G06038652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. FILL WASHER JAR WITH WASHER FLUID
    1. Connect the washer hose to the windshield washer motor and pump assembly, and fill the washer jar with washer fluid.
  3. INSTALL FRONT FENDER LINER RH (See  INSTALLATION  )
  4. INSTALL FRONT WHEEL RH  (See INSTALLATION )

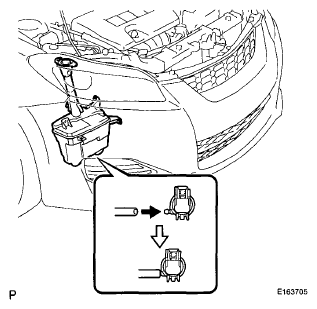

    Fig 2: Filling Washer Jar With Washer Fluid
    G06038633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
