System Diagram

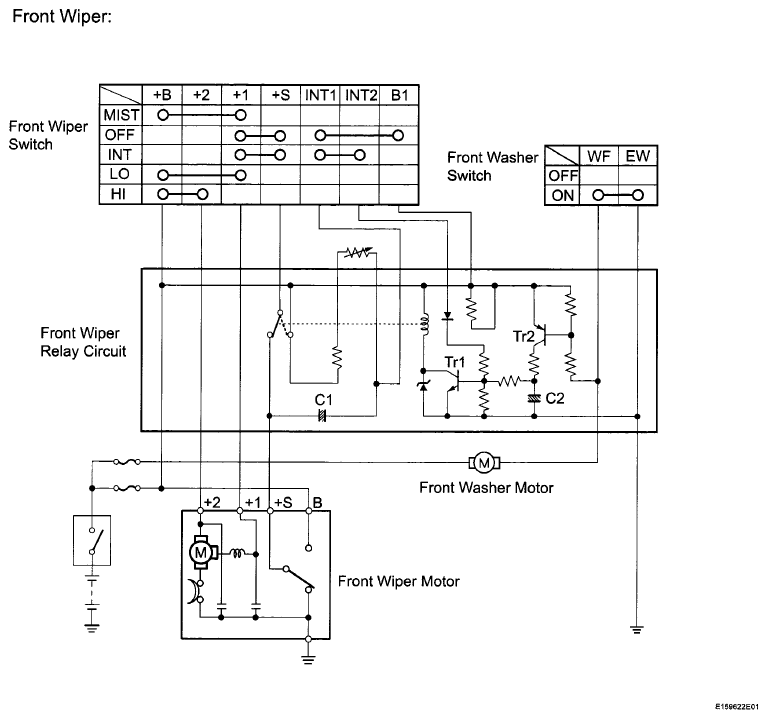

Fig 1: Wiper And Washer System Diagram - Front Wiper
G06038552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

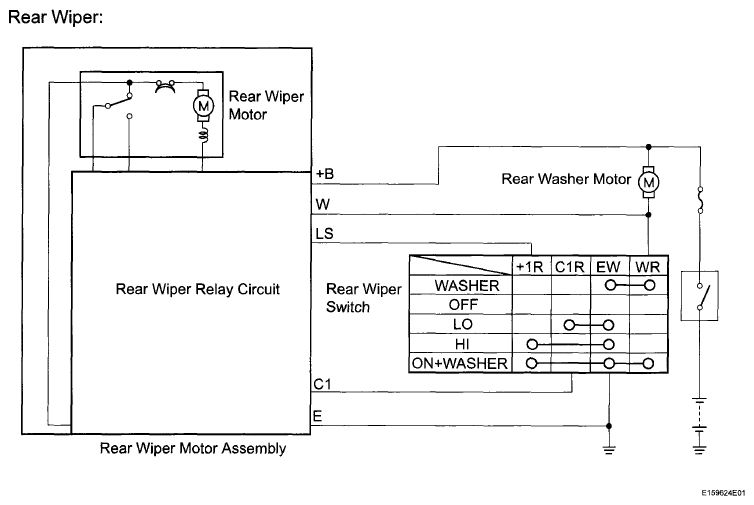

Fig 2: Wiper And Washer System Diagram - Rear Wiper
G06038553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
