Wiper Switch: Components

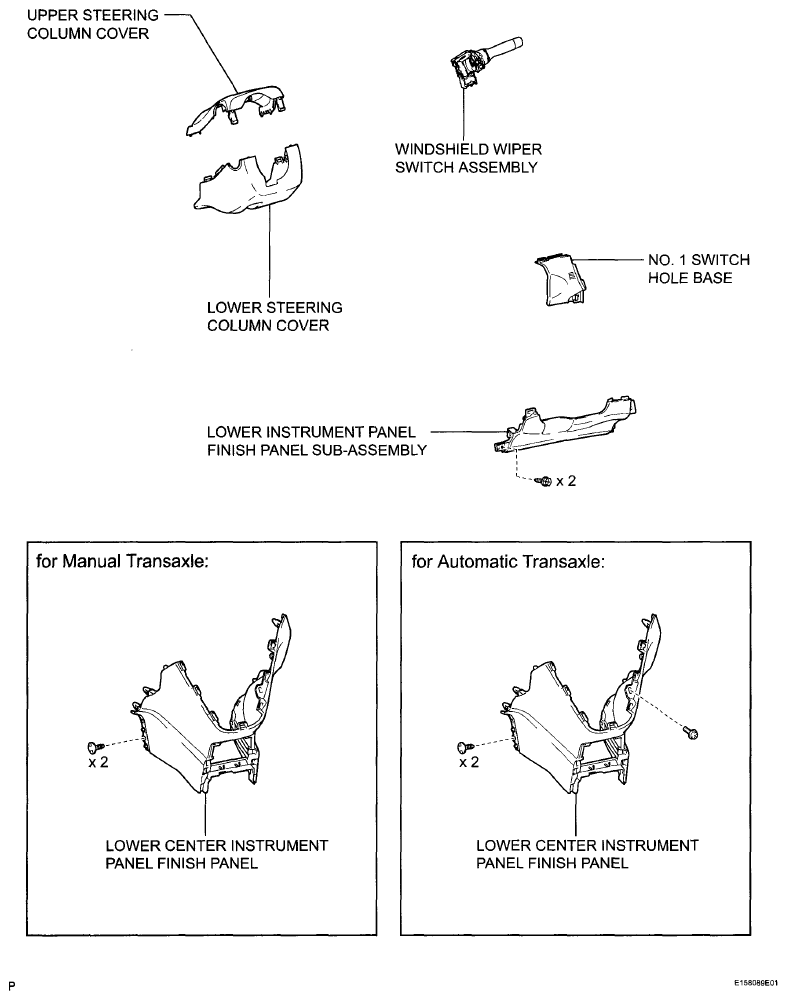

Fig 1: Wiper Switch Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

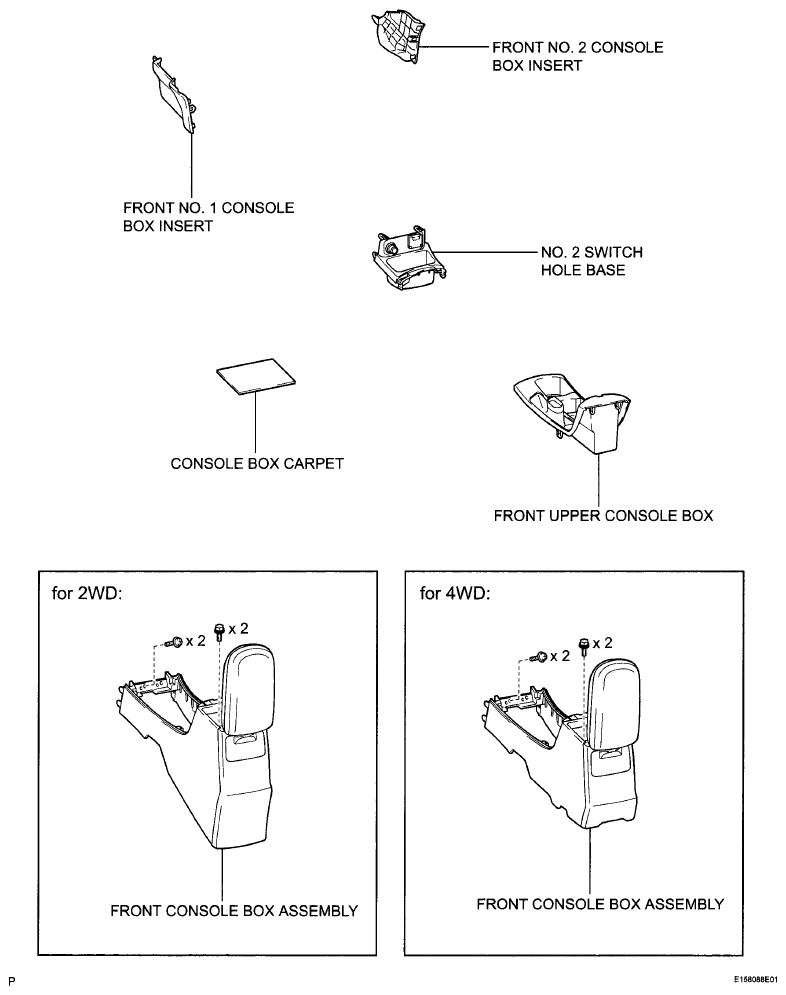

Fig 2: Identifying Wiper Switch Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Wiper Switch Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Wiper Switch Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
