Transmitter Battery: Replacement

  1. REMOVE TRANSMITTER HOUSING COVER
    1. Using a screwdriver with its tip wrapped in protective tape, pry open the transmitter housing cover.
    NOTE: Do not forcibly pry the cover.

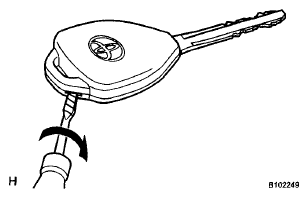

    Fig 1: Removing Transmitter Housing Cover
    G06011224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE DOOR CONTROL TRANSMITTER MODULE
    1. Using a screwdriver with its tip wrapped in protective tape, remove the door control transmitter module from the transmitter housing case.
    NOTE: Handle each part with care as they are delicate electrical parts.
    Fig 2: Removing Door Control Transmitter Module
    G05586156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TRANSMITTER BATTERY
    1. Twist the coin in the direction of the arrow in the illustration, and remove the transmitter battery cover.
      Fig 3: Removing Transmitter Battery
      G05586157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the battery (lithium battery: CR2025).
    NOTE:
    • Do not push the terminals with a finger.
    • Do not forcibly pry up the battery. The terminals may become damaged.
    • Do not touch the battery with wet hands. Water may cause rust.
    • Do not touch or move any components inside the transmitter. It may cease to work.

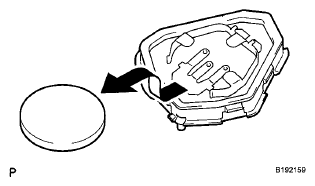

    Fig 4: Removing Lithium Battery
    G06036363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL TRANSMITTER BATTERY
    1. Install a battery (lithium battery: CR2025) with the positive (+) side facing upward, as shown in the illustration.
      NOTE:
      • Be careful not to bend the transmitter battery electrode during insertion.
      • Keep the transmitter cover interior free of dust and oil.

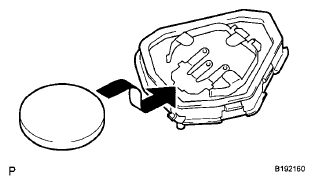

      Fig 5: Installing Lithium Battery
      G06036364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the cover.
    Fig 6: Installing Cover
    G05586160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL DOOR CONTROL TRANSMITTER MODULE
    1. Install the door control transmitter module into the transmitter housing case.
    Fig 7: Installing Door Control Transmitter Module
    G05586161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL TRANSMITTER HOUSING COVER
    1. Install the transmitter housing cover to the transmitter housing case.
    2. Check that the transmitter LED illuminates when the switch is pressed.

      OK:

      Transmitter LED illuminates when switch is pressed  .

      Fig 8: Installing Transmitter Housing Cover
      G04833227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
