Transponder Key Amplifier: Components

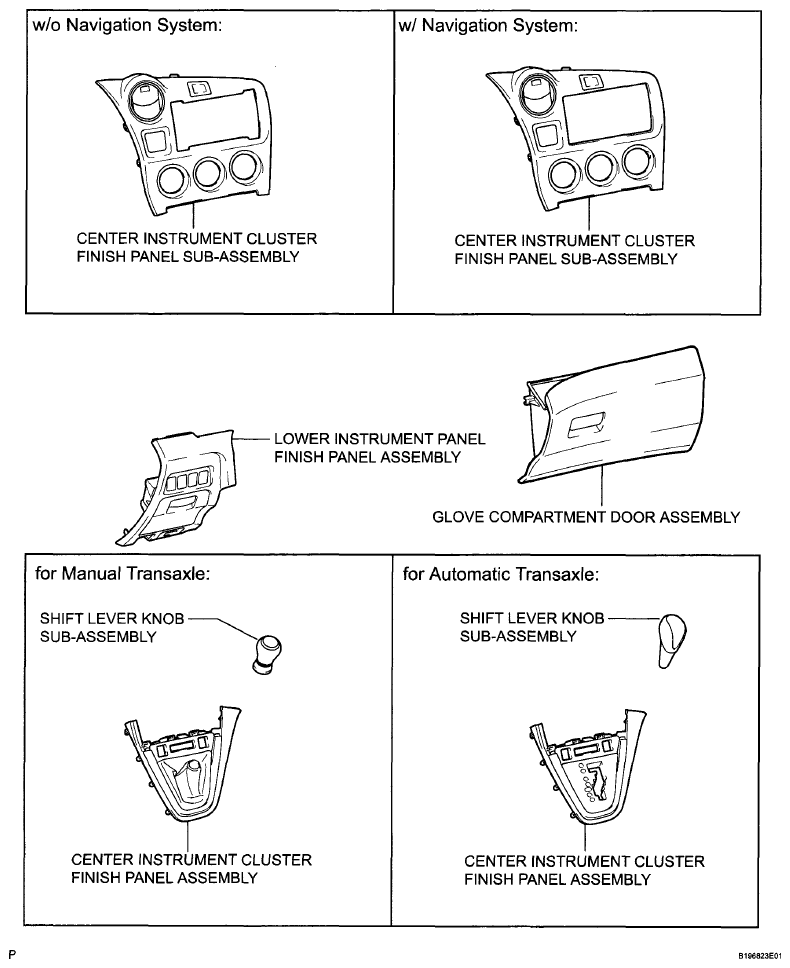

Fig 1: Identifying Transponder Key Amplifier Components (1 Of 5)
G06036546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

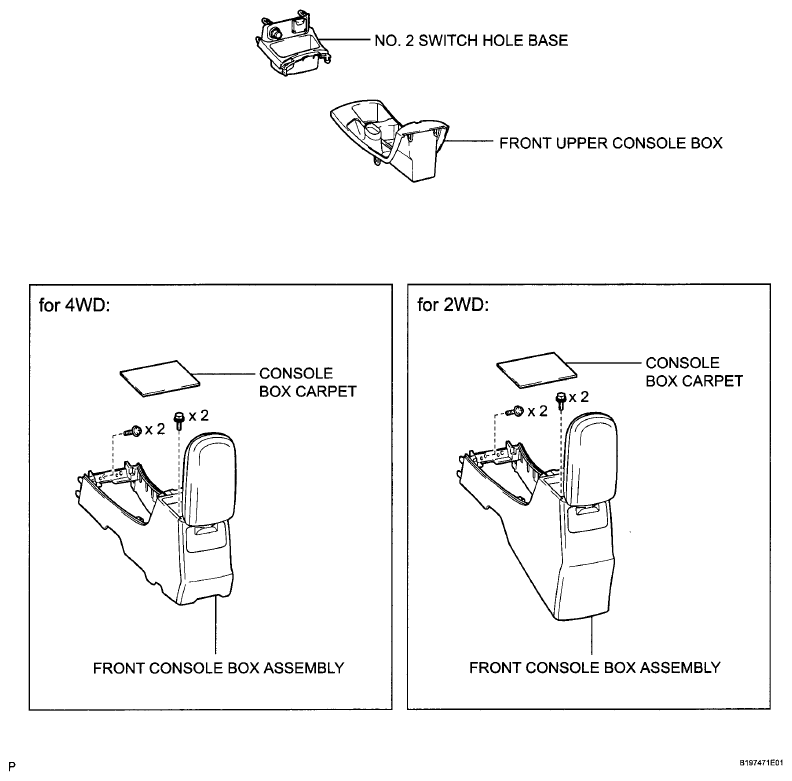

Fig 2: Identifying Transponder Key Amplifier Components (2 Of 5)
G06036547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

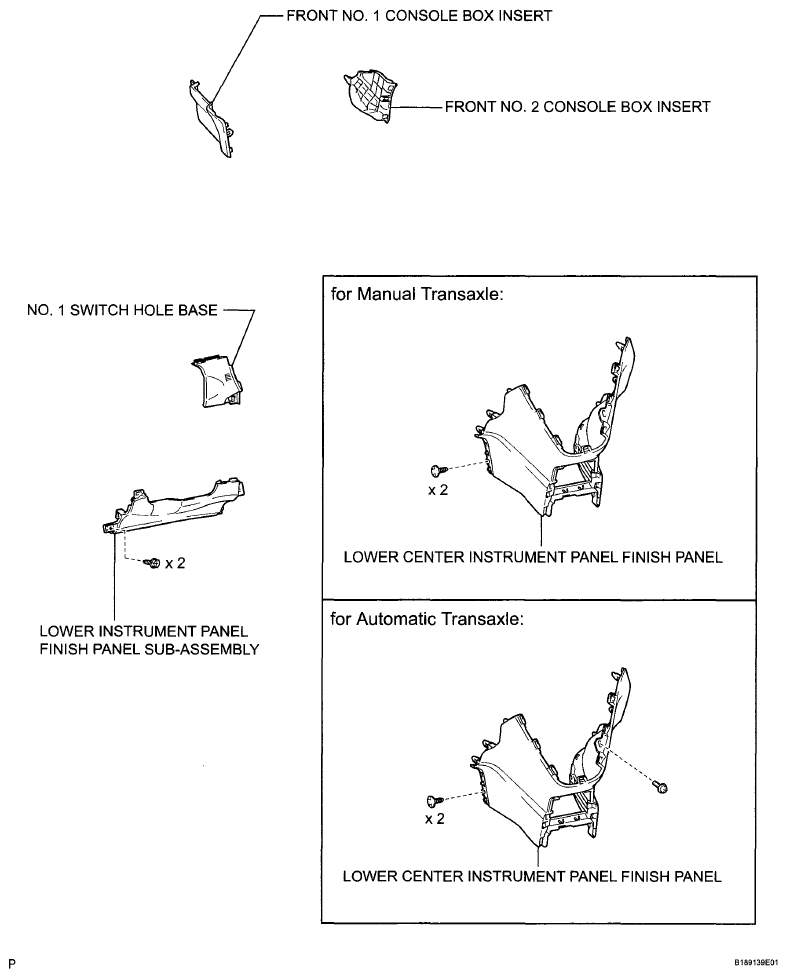

Fig 3: Identifying Transponder Key Amplifier Components (3 Of 5)
G06036548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Transponder Key Amplifier Replacement Components With Torque Specifications (4 Of 5)
G06042951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

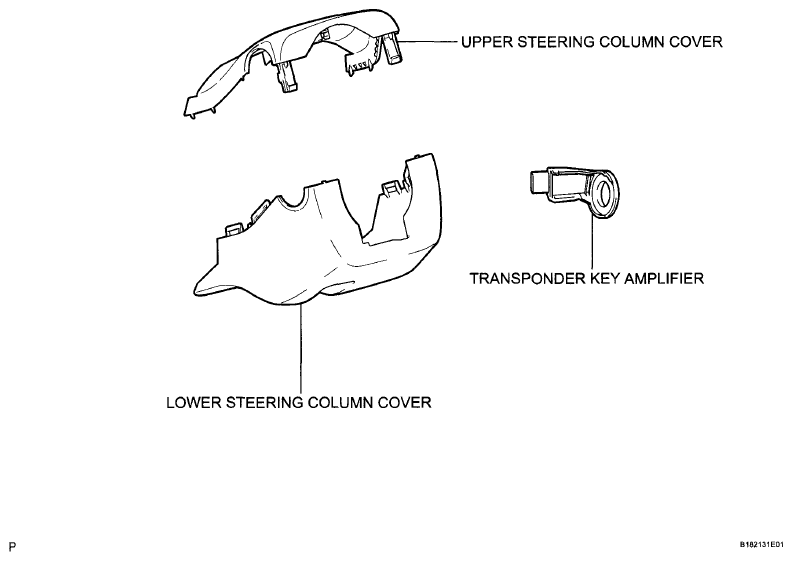

Fig 5: Identifying Transponder Key Amplifier Components (5 Of 5)
G06036550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
