Front Passenger Side Power Window Switch: Inspection

INSPECT POWER WINDOW SWITCH

Measure the resistance according to the value(s) in the table below.

Standard Resistance

RESISTANCE SPECIFIED CONDITION

Tester Connection	Switch Condition	Specified Condition
3 (B) - 4 (U) 2 (SD) - 1 (D)	UP	Below 1 Ω
5 (SU) - 4 (U) 2 (SD) - 1 (D)	OFF	Below 1 Ω
5 (SU) - 4 (U) 3 (B) - 1 (D)	DOWN	Below 1 Ω

If the result is not specified, replace the power window switch.

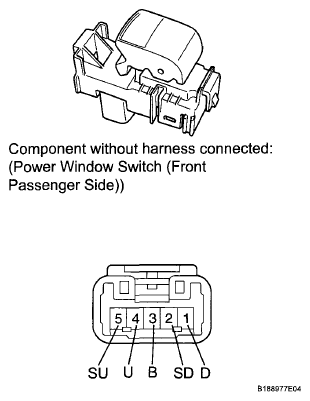

Fig 1: Identifying Terminals Of Power Window Switch Connector

G06038114

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
