Front Passenger Side Power Window Switch: Installation

INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY
1. Engage the 2 claws to install the power window regulator switch assembly.

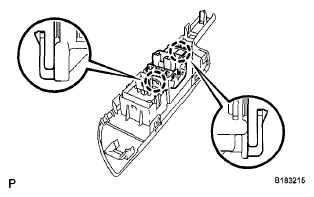

Fig 1: Identifying Power Window Regulator Switch Assembly And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT ARMREST UPPER BASE PANEL RH
1. Connect the connector.
2. Engage the 7 claws and clip to install the front armrest upper base panel RH.

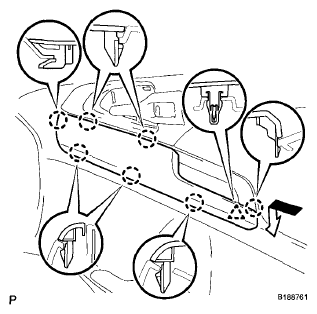

Fig 2: Identifying Front Armrest Upper Base Panel RH And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
