Front Passenger Side Power Window Switch: Removal

REMOVE FRONT ARMREST UPPER BASE PANEL RH
1. Using a moulding remover, disengage the clip and 7 claws.
2. Disconnect the connector and remove the front armrest upper base panel RH.

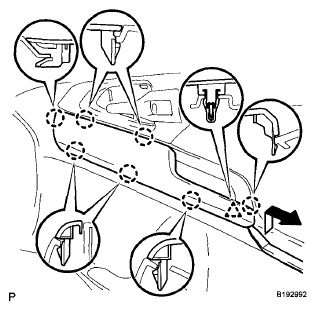

  Fig 1: Identifying Front Armrest Upper Base Panel RH Clip And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY
1. Using a screwdriver with the tip wrapped with protective tape, disengage the 2 claws and remove the power window regulator switch assembly.

  Fig 2: Identifying Power Window Regulator Switch Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
