Power Window Master Switch: Inspection

INSPECT POWER WINDOW MASTER SWITCH

Measure the resistance according to the value(s) in the table below.

Standard Resistance

RESISTANCE SPECIFIED CONDITION

Tester Connection	Switch Condition	Specified Condition
1 (E) - 4 (D) 3 (U) - 6 (B)	UP (Driver side)	Below 1 Ω
1 (E) - 3 (U) 6 (B) - 4 (D)	DOWN (Driver side)	Below 1 Ω
1 (E) - 3 (U) 6 (B) - 4 (D)	AUTO DOWN (Driver side)	Below 1 Ω
6 (B) - 16 (U) 15 (D) - 1 (E)	UP (Front passenger side)	Below 1 Ω
6 (B) - 15 (D) 16 (U) - 1 (E)	DOWN (Front passenger side)	Below 1 Ω
6 (B) - 12 (U) 13 (D) - 1 (E)	UP (Rear LH)	Below 1 Ω
6 (B) - 13 (D) 12 (U) - 1 (E)	DOWN (Rear LH)	Below 1 Ω
6 (B) - 10 (U) 18 (D) - 1 (E)	UP (Rear RH)	Below 1 Ω
6 (B) - 18 (D) 10 (U) - 1 (E)	DOWN (Rear RH)	Below 1 Ω

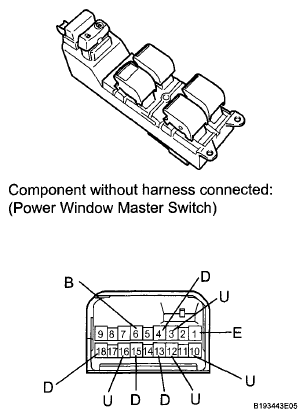

Fig 1: Identifying Terminals Of Power Window Master Switch Connector

G06038109

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not specified, replace the power window master switch.
