Rear Power Window Switch: Installation

  1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. Engage the 2 claws to install the rear power window regulator switch assembly.
  2. INSTALL REAR DOOR ARMREST UPPER BASE PANEL  (See REASSEMBLY )

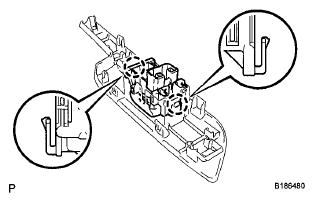

    Fig 1: Identifying Power Window Regulator Switch Assembly And Claws
    G06038399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
