Parts Location

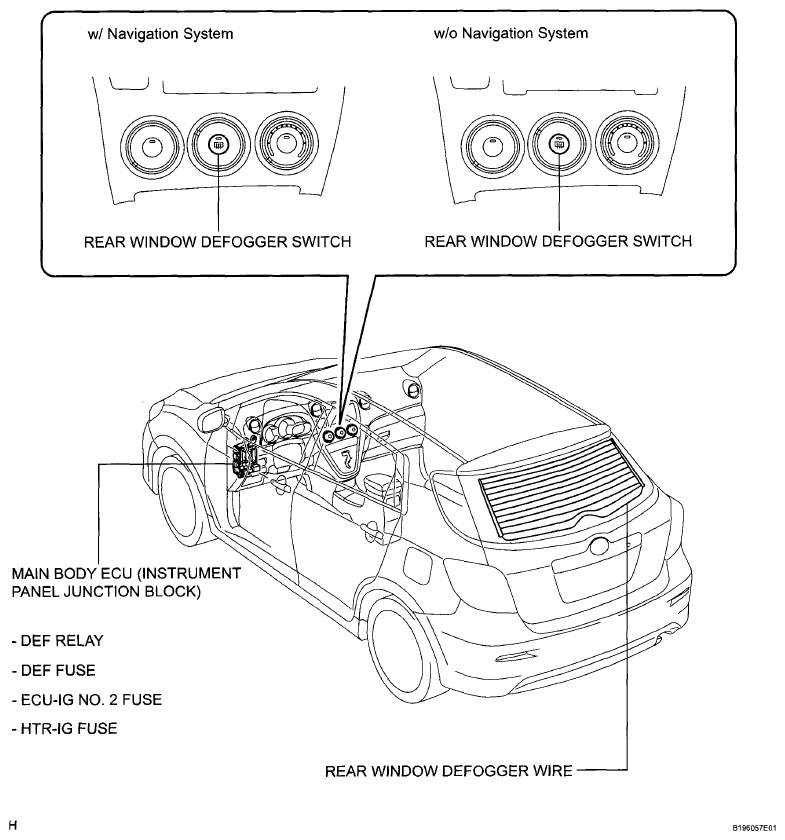

Fig 1: Identifying Window Defogger System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
