Window Defogger System: Repair

REPAIR REAR WINDOW DEFOGGER WIRE
1. Clean the broken wire tips with a grease, wax and silicone remover.
2. Place the masking tape along both sides of the wire.

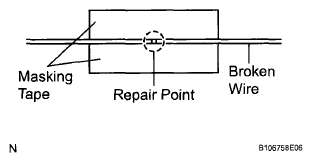

  Fig 1: Repairing Rear Window Defogger Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Thoroughly mix the repair agent (Dupont paste No. 4817 or equivalent).
4. Using a fine tip brush, apply a small amount of the agent to the wire.
5. After a few minutes, remove the masking tape.
NOTE: Do not repair the rear window defogger wire again for at least 24 hours.

Fig 2: Applying Small Amount Of Agent To Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
