Rear Seat Assembly: Disassembly

  1. REMOVE REAR SEATBACK BOARD LH
    1. Remove the 2 screws.

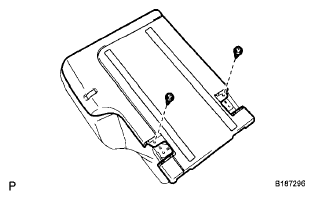

      Fig 1: Identifying Rear Seatback Board LH Screws
      G06037279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 hooks.
    3. Disengage the 3 guides and remove the rear seatback board LH as shown in the illustration.

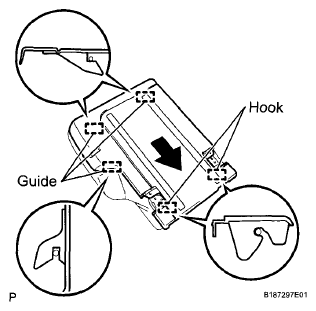

    Fig 2: Identifying Rear Seatback Board LH Guides And Hooks
    G06037280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR SEATBACK LOCK RELEASE BUTTON LH
    1. Remove the rear seatback lock release button LH as shown in the illustration.

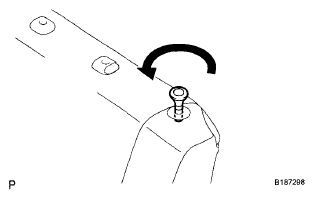

    Fig 3: Removing Rear Seatback Lock Release Button LH
    G06037281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEATBACK STOP BUTTON GROMMET LH
    1. Using needle-nose pliers, disengage the 2 claws and remove the rear seatback stop button grommet LH as shown in the illustration.
      NOTE: Wrap the needle-nose pliers with a shop rag or piece of cloth to prevent damage to the rear seatback stop button grommet or the separate type rear seatback cover.

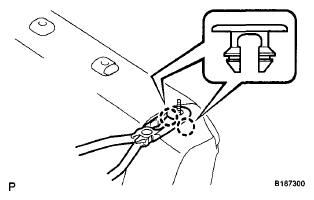

      Fig 4: Identifying Rear Seatback Stop Button Grommet LH Claws
      G06037282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SEATBACK COVER WITH PAD LH
    1. Disengage the hook as shown in the illustration.
    2. Remove the 10 hog rings.

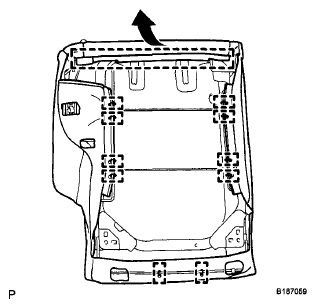

      Fig 5: Identifying Rear Seatback Cover With Pad LH Hog Rings
      G06037283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and remove the 2 rear seat headrest supports.
    4. Remove the rear seatback cover with pad LH from the rear seatback frame sub-assembly LH.
    Fig 6: Identifying Rear Seat Headrest Supports And Claws
    G06037284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SEPARATE TYPE REAR SEATBACK COVER LH
    1. Remove the 6 hog rings and the separate type rear seatback cover LH.

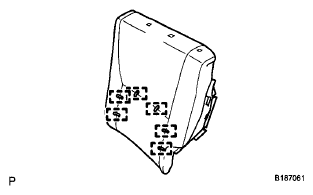

    Fig 7: Identifying Separate Type Rear Seatback Cover LH Hog Rings
    G06037285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SEATBACK LOCK ASSEMBLY LH
    1. Remove the 2 bolts and the rear seatback lock assembly LH.
    Fig 8: Identifying Rear Seatback Lock Assembly LH Bolts
    G06037286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SEATBACK BOARD RH
    1. Remove the 2 screws.
      Fig 9: Identifying Rear Seatback Board RH Screws
      G06037287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 hooks.
    3. Disengage the 4 guides and remove the rear seatback board RH as shown in the illustration.
  8. REMOVE SEAT BELT ANCHOR COVER CAP  (See REMOVAL )
  9. REMOVE REAR SEAT SHOULDER BELT HOLE COVER  (See REMOVAL )
  10. REMOVE REAR SEAT CENTER OUTER BELT ASSEMBLY  (See REMOVAL )

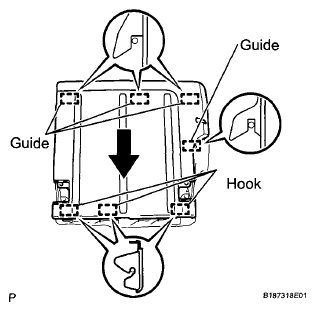

    Fig 10: Identifying Rear Seatback Board RH Guides And Hooks
    G06037288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR SEATBACK LOCK RELEASE BUTTON RH
    1. Remove the rear seatback lock release button RH as shown in the illustration.

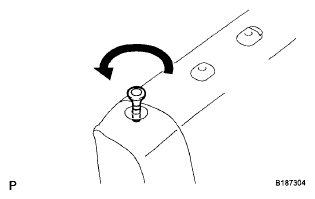

    Fig 11: Removing Rear Seatback Lock Release Button RH
    G06037289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR SEATBACK STOP BUTTON GROMMET RH
    1. Using needle-nose pliers, disengage the 2 claws and remove the rear seatback stop button grommet RH as shown in the illustration.
      NOTE: Wrap the needle-nose pliers with a shop rag or piece of cloth to prevent damage to the rear seatback stop button grommet or the separate type rear seatback cover.

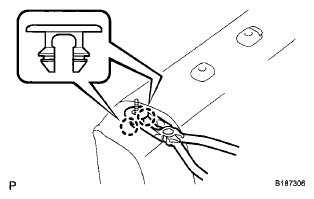

      Fig 12: Identifying Rear Seatback Stop Button Grommet RH Claws
      G06037290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR SEATBACK COVER WITH PAD RH
    1. Disengage the hook as shown in the illustration.
    2. Remove the 12 hog rings.

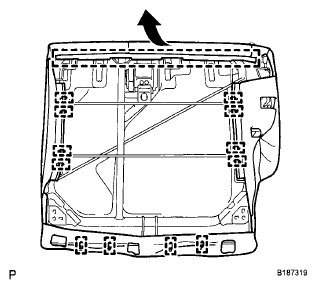

      Fig 13: Identifying Rear Seatback Cover With Pad RH Hog Rings
      G06037291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 8 claws and remove the 4 rear seat headrest supports.
    4. Remove the rear seatback cover with pad RH from the rear seatback frame sub-assembly RH.
    Fig 14: Identifying Rear Seat Headrest Supports And Claws
    G06037292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE SEPARATE TYPE REAR SEATBACK COVER RH
    1. Remove the 6 hog rings and the separate type rear seatback cover RH.

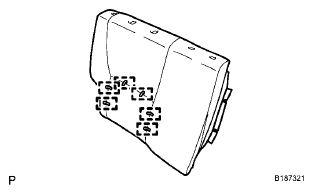

    Fig 15: Identifying Separate Type Rear Seatback Cover RH And Hog Rings
    G06037293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR SEATBACK LOCK ASSEMBLY RH
    1. Remove the 2 bolts and the rear seatback lock assembly RH.
  16. REMOVE BENCH TYPE REAR SEAT CUSHION COVER
    1. Remove the 27 hog rings.

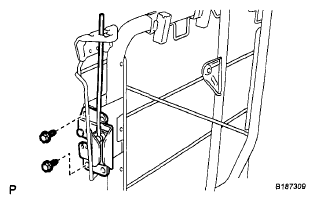

      Fig 16: Identifying Rear Seatback Lock Assembly RH And Bolts
      G06037294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

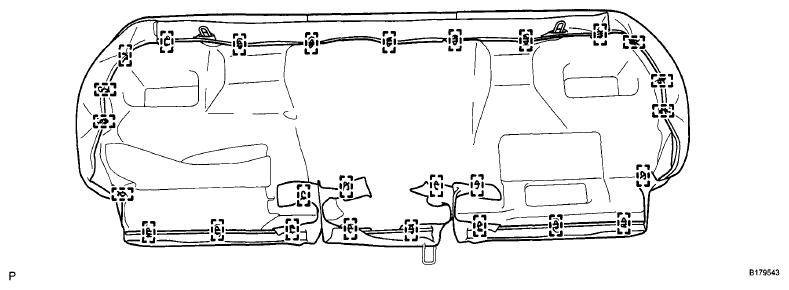

      Fig 17: Identifying Bench Type Rear Seat Cushion Cover Hog Rings
      G06037295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 12 hog rings and the bench type rear seat cushion cover.

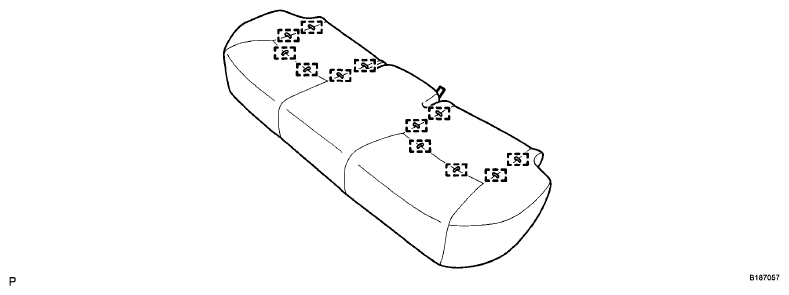

    Fig 18: Identifying Bench Type Rear Seat Cushion Cover And Hog Rings
    G06037296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
