Rear Seat Assembly: Installation

INSTALL REAR SEATBACK ASSEMBLY RH
1. Place the rear seatback assembly RH in the cabin.
  NOTE: Be careful not to damage the vehicle body.

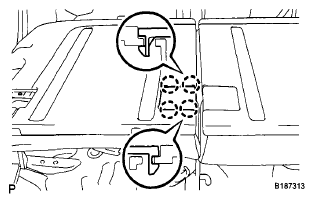

  Fig 1: Identifying Rear Seatback Board LH With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seatback assembly RH with the 2 bolts.
  Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)

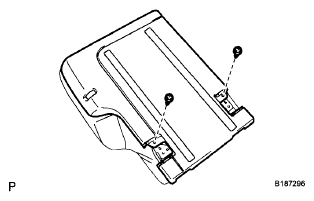

  Fig 2: Identifying Rear Seatback Assembly RH And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK INNER HINGE COVER (for RH Side)
1. Engage the 4 claws and install the rear seatback inner hinge cover.

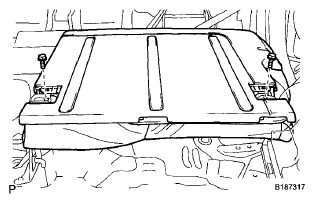

Fig 3: Identifying Rear Seatback Inner Hinge Cover Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK OUTER HINGE COVER (for RH Side)
1. Engage the 4 claws and install the rear seatback outer hinge cover.
CONNECT REAR SEAT CENTER OUTER BELT ASSEMBLY (See INSTALLATION )
INSTALL REAR SEAT CENTER HEADREST ASSEMBLY

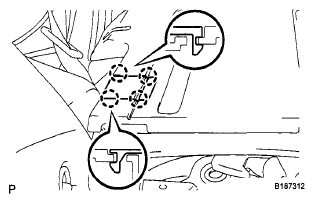

Fig 4: Identifying Rear Seatback Outer Hinge Cover Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
INSTALL REAR SEATBACK ASSEMBLY LH
1. Place the rear seatback assembly LH in the cabin.
  NOTE: Be careful not to damage the vehicle body.
2. Install the rear seatback assembly LH with the 2 bolts.
  Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)

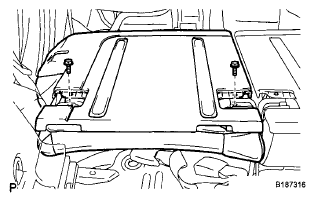

  Fig 5: Identifying Rear Seatback Assembly LH And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK INNER HINGE COVER (for LH Side)
1. Engage the 4 claws and install the rear seatback inner hinge cover.

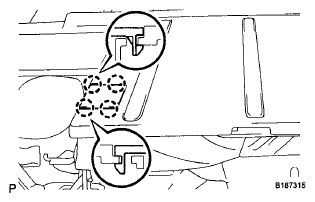

Fig 6: Identifying Rear Seatback Inner Hinge Cover Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK OUTER HINGE COVER (for LH Side)
1. Engage the 4 claws and install the rear seatback outer hinge cover.
INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)

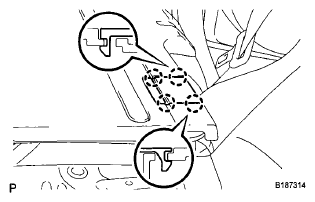

Fig 7: Identifying Rear Seatback Outer Hinge Cover Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION ASSEMBLY
1. Attach the rear hook of the seat cushion to the seatback.
2. Attach the 2 front hooks of the seat cushion to the vehicle body.
3. Confirm that the seat cushion is firmly installed.
  NOTE: When installing the seat cushion, make sure that the seat belt buckle is not under the seat cushion.

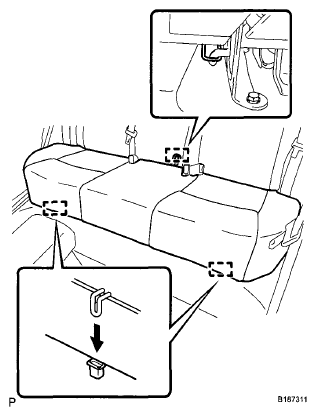

  Fig 8: Installing Front Hooks Of Seat Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
