Rear Seat Assembly: Reassembly

  1. INSTALL BENCH TYPE REAR SEAT CUSHION COVER
    1. Using hog ring pliers, install 12 new hog rings to the cushion cover and cushion pad.

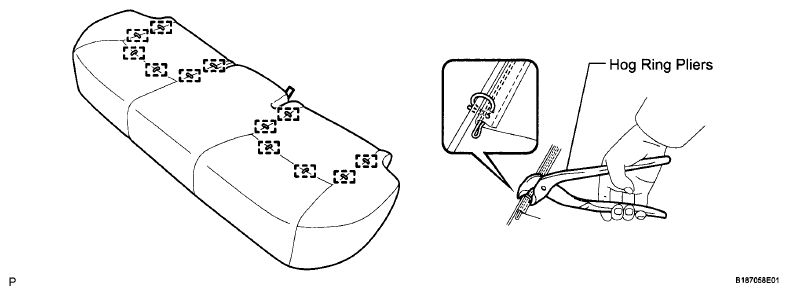

      Fig 1: Installing Hog Rings To Cushion Cover And Cushion Pad
      G06037297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using hog ring pliers, install the bench type rear seat cushion cover with 27 new hog rings.

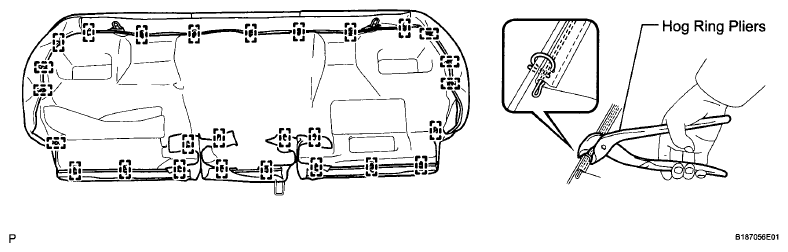

    Fig 2: Installing Bench Type Rear Seat Cushion Cover With Hog Rings
    G06037298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR SEATBACK LOCK ASSEMBLY RH
    1. Install the 2 bolts and the rear seatback lock assembly RH.

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

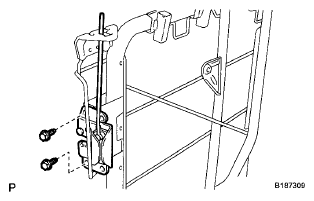

      Fig 3: Identifying Rear Seatback Lock Assembly RH And Bolts
      G06037299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SEPARATE TYPE REAR SEATBACK COVER RH
    1. Using hog ring pliers, install the separate type rear seatback cover RH with 6 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
  4. INSTALL REAR SEATBACK COVER WITH PAD RH
    1. Temporarily install the rear seatback cover with pad RH to the rear seatback frame sub-assembly RH.

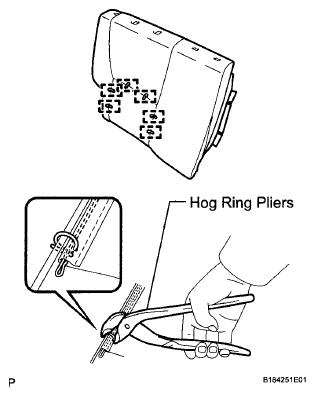

      Fig 4: Installing Separate Type Rear Seatback Cover RH With Hog Rings
      G06037300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 8 claws and install the 4 rear seat headrest supports.
    3. Using hog ring pliers, install 12 new hog rings to the seatback cover and the seatback frame.

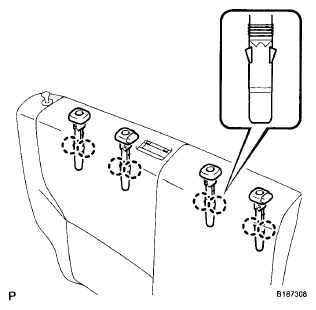

      Fig 5: Identifying Rear Seat Headrest Supports And Claws
      G06037292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

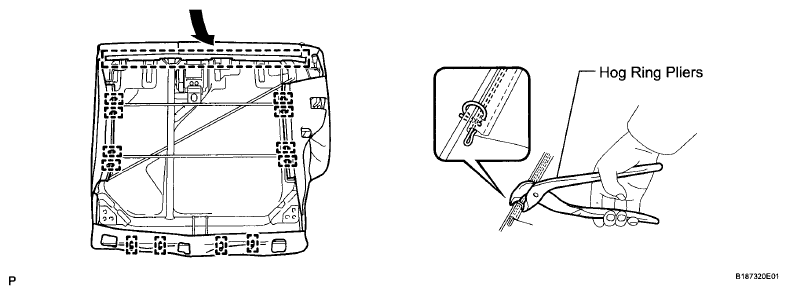

      Fig 6: Installing Hog Rings To Seatback Cover And Seatback Frame
      G06037302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
    4. Engage the hook and install the rear seatback cover with pad RH as shown in the illustration.
  5. INSTALL REAR SEATBACK STOP BUTTON GROMMET RH
    1. Engage the 2 claws and install the rear seatback stop button grommet RH.

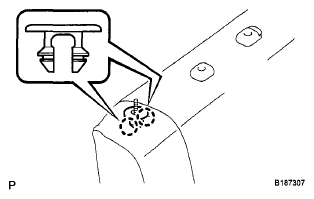

    Fig 7: Identifying Rear Seatback Stop Button Grommet RH Claws
    G06037303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR SEATBACK LOCK RELEASE BUTTON RH
    1. Install the rear seatback lock release button RH as shown in the illustration.
  7. INSTALL REAR SEAT CENTER OUTER BELT ASSEMBLY  (See INSTALLATION )
  8. INSTALL REAR SEAT SHOULDER BELT HOLE COVER  (See INSTALLATION )

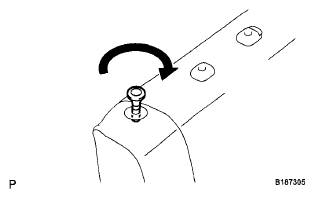

    Fig 8: Installing Rear Seatback Lock Release Button RH
    G06037304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL SEAT BELT ANCHOR COVER CAP  (See INSTALLATION )
  10. INSTALL REAR SEATBACK BOARD RH
    1. Engage the 4 guides.
    2. Engage the 3 hooks as shown in the illustration.

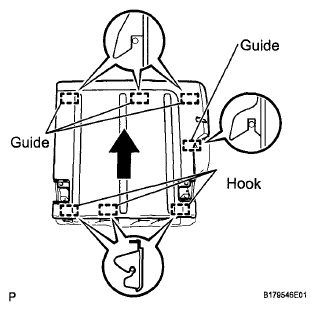

      Fig 9: Identifying Rear Seatback Board RH Hooks And Guides
      G06037305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear seatback board RH with the 2 screws.

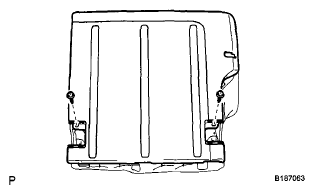

    Fig 10: Identifying Rear Seatback Board RH Screws
    G06037287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR SEATBACK LOCK ASSEMBLY LH
    1. Install the 2 bolts and the rear seatback lock assembly LH.

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

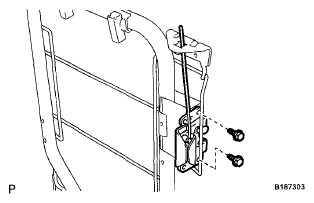

      Fig 11: Identifying Rear Seatback Lock Assembly LH Bolts
      G06037286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL SEPARATE TYPE REAR SEATBACK COVER LH
    1. Using hog ring pliers, install the separate type rear seatback cover LH with 6 new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
  13. INSTALL REAR SEATBACK COVER WITH PAD LH
    1. Temporarily install the rear seatback cover with pad LH to the rear seatback frame sub-assembly LH.

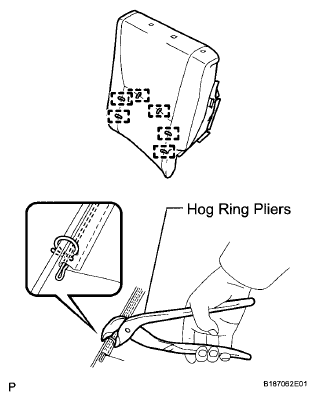

      Fig 12: Installing Separate Type Rear Seatback Cover LH With Hog Rings
      G06037308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 claws and install the 2 rear seat headrest supports.

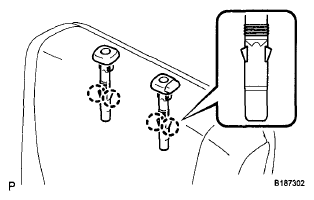

      Fig 13: Identifying Rear Seat Headrest Supports And Claws
      G06037284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using hog ring pliers, install 10 new hog rings to the seatback cover and the seatback frame.

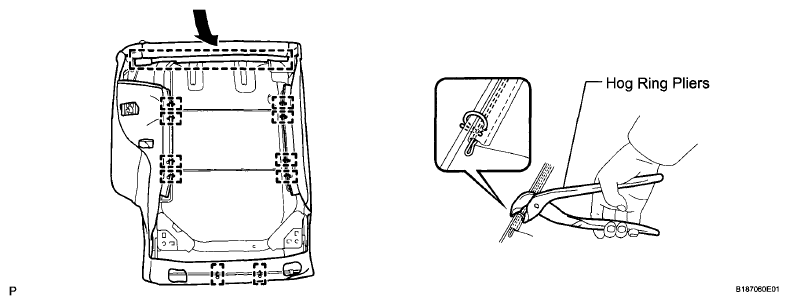

      Fig 14: Installing Hog Rings To Seatback Cover And Seatback Frame
      G06037310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
    4. Engage the hook and install the rear seatback cover with pad LH as shown in the illustration.
  14. INSTALL REAR SEATBACK STOP BUTTON GROMMET LH
    1. Engage the 2 claws and install the rear seatback stop button grommet LH.

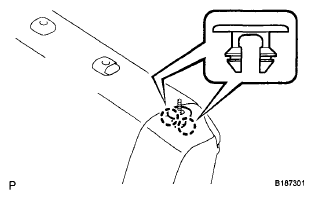

    Fig 15: Identifying Rear Seatback Stop Button Grommet LH Claws
    G06037311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR SEATBACK LOCK RELEASE BUTTON LH
    1. Install the rear seatback lock release button LH as shown in the illustration.

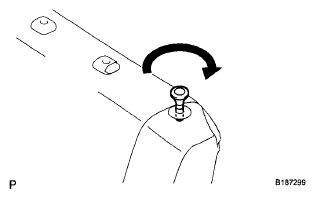

    Fig 16: Installing Rear Seatback Lock Release Button LH
    G06037312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL REAR SEATBACK BOARD LH
    1. Engage the 3 guides.
    2. Engage the 2 hooks as shown in the illustration.

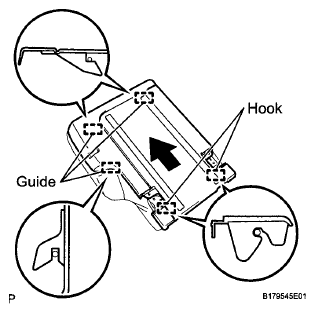

      Fig 17: Identifying Rear Seatback Board LH Hooks And Guides
      G06037313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear seatback board LH with the 2 screws.
