Parking Brake Lever: Components

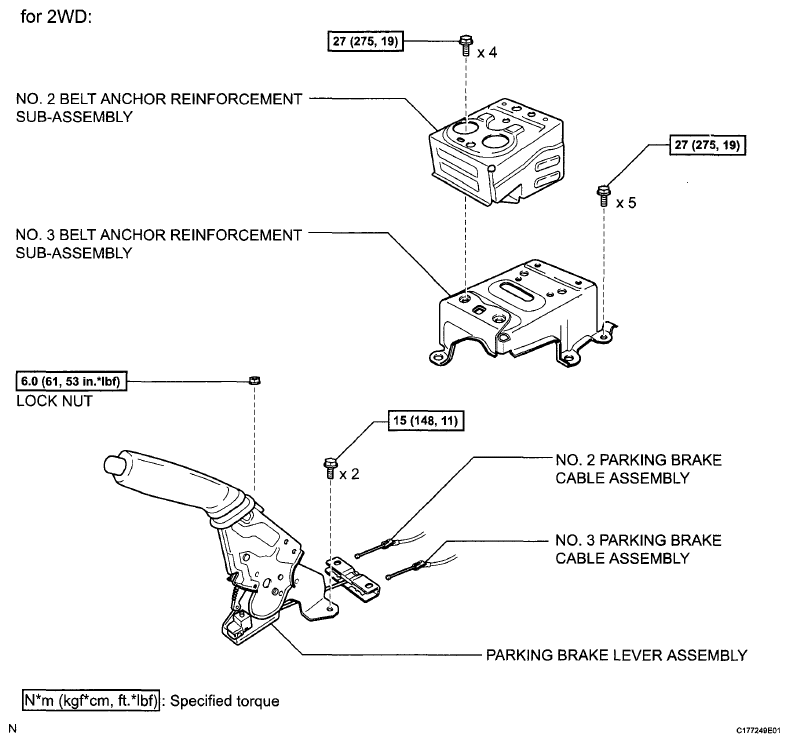

Fig 1: Parking Brake Lever Replacement Components With Torque Specifications (1 Of 4)
G06035366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

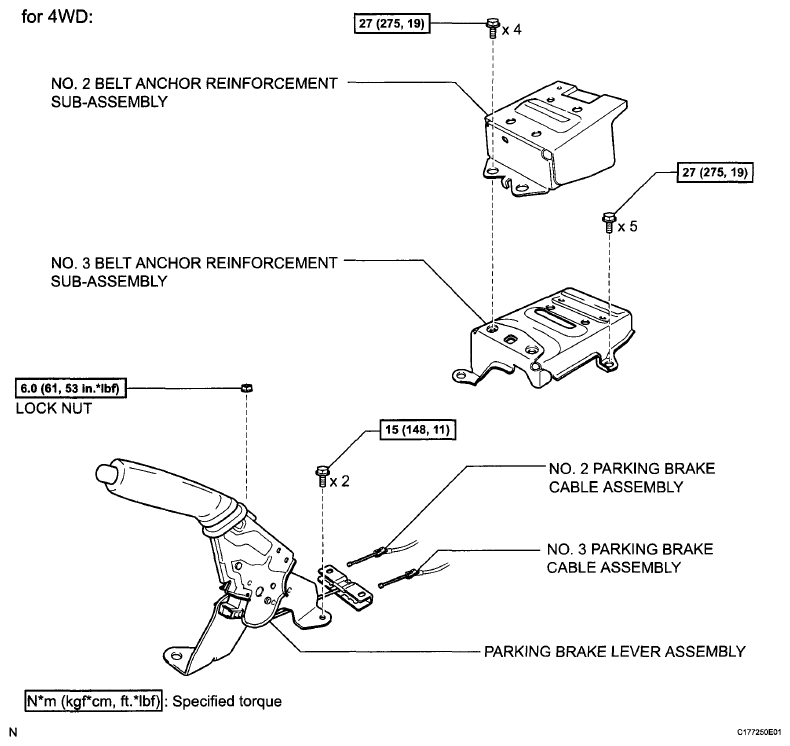

Fig 2: Parking Brake Lever Replacement Components With Torque Specifications (2 Of 4)
G06035367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

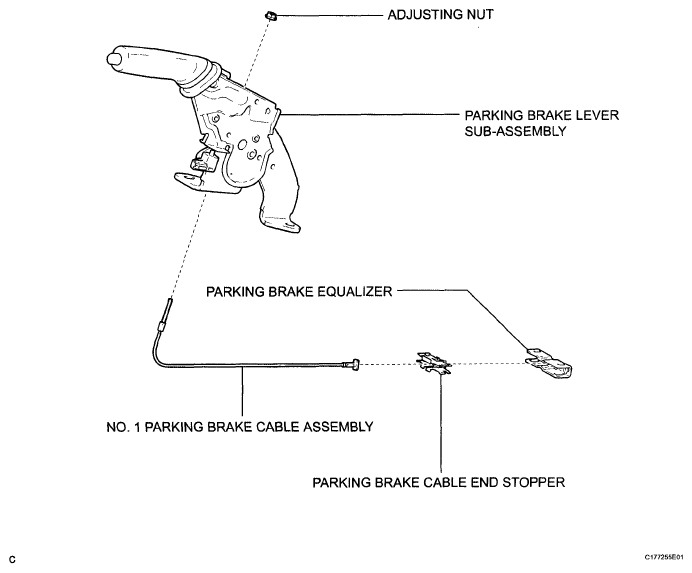

Fig 3: Identifying Parking Brake Lever Components (3 Of 4)
G06010168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Parking Brake Switch Replacement Components With Torque Specifications (2 Of 2)
G06010169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
