PCV Valve: Components

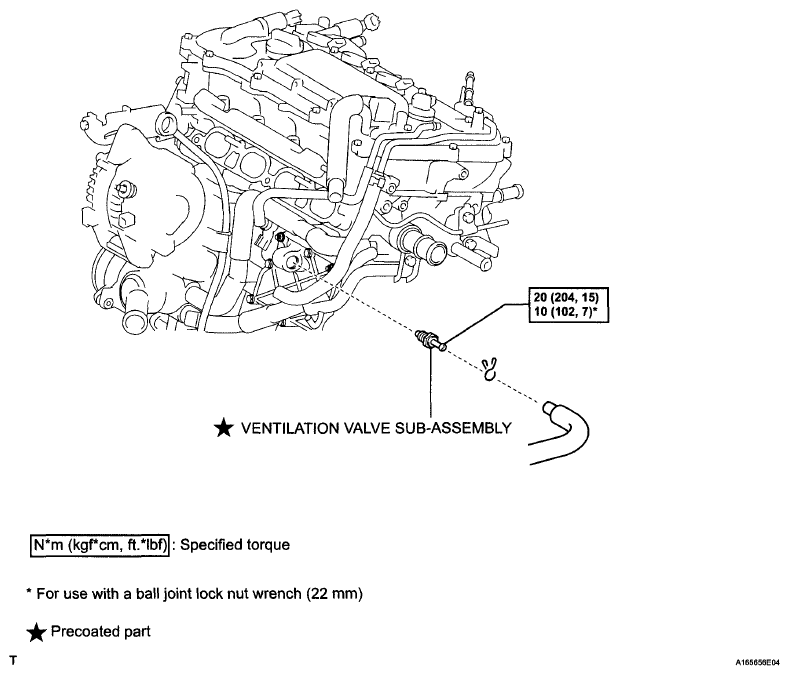

Fig 1: Identifying PCV Valve Components
G06009179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
