Vehicle Lift And Support Locations

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

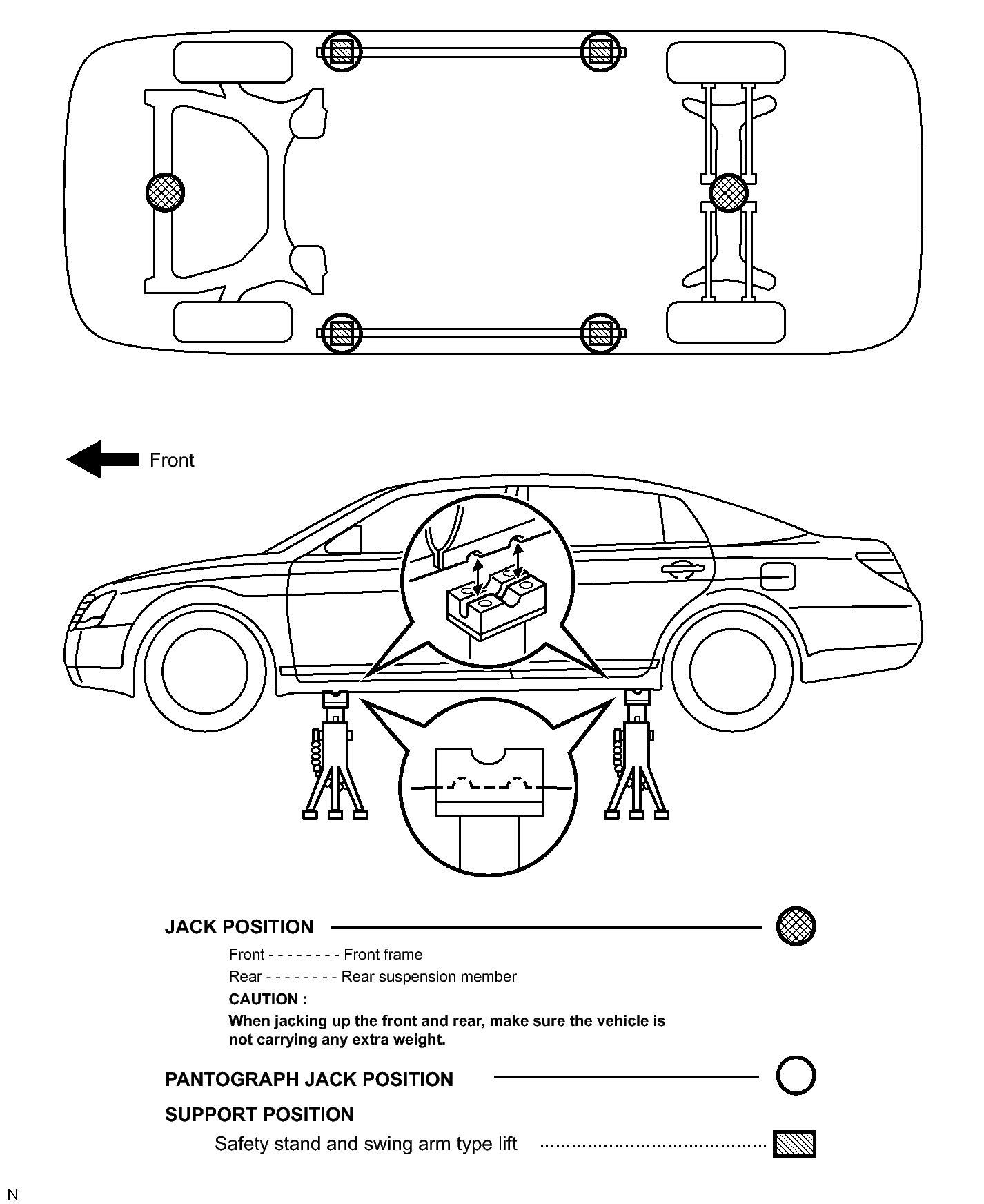

Fig 1: Identifying Vehicle Lift And Support Locations (Jack Type Lift)
GTY195960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

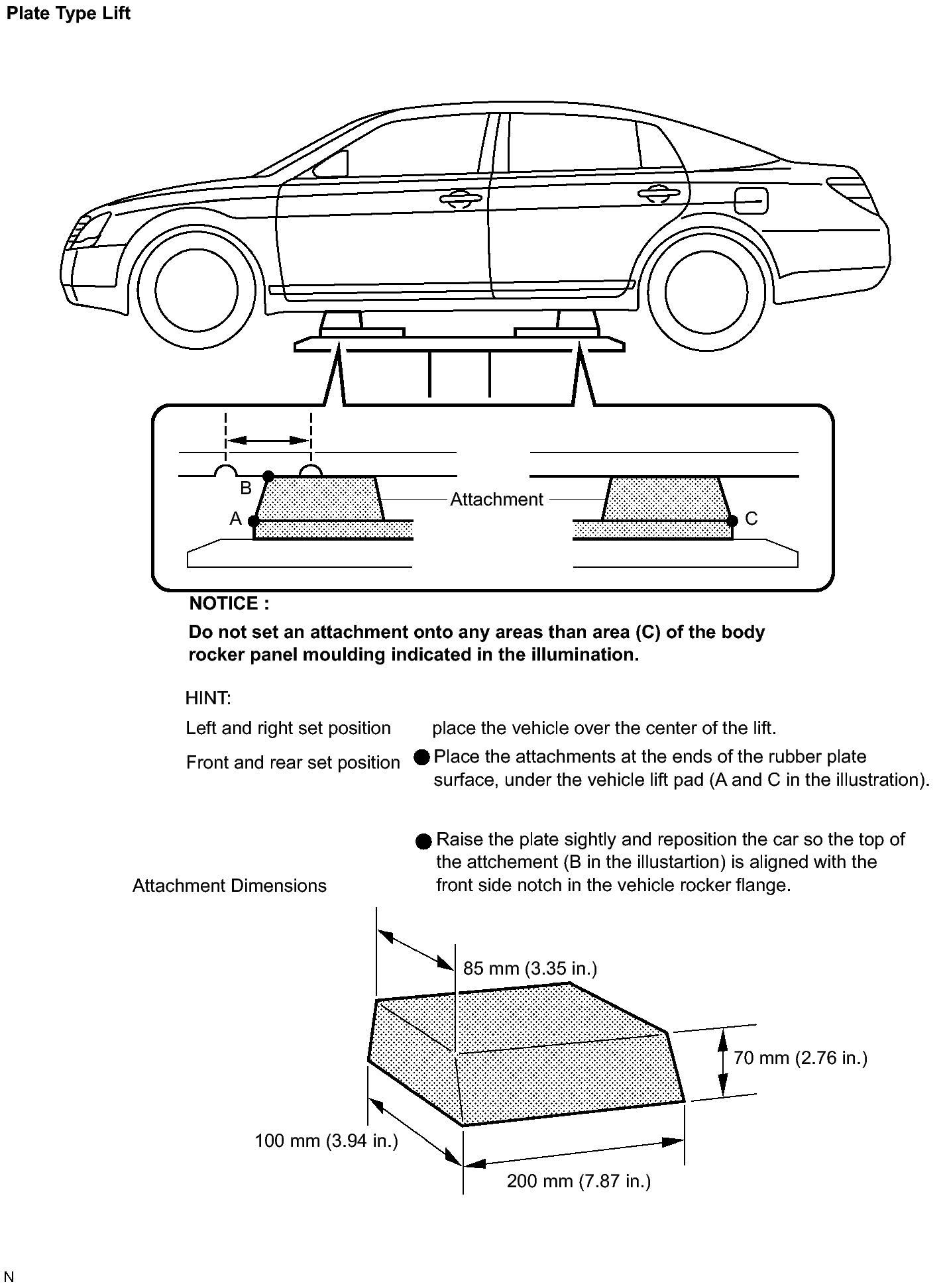

Fig 2: Identifying Vehicle Lift And Support Locations (Plate Type Lift)
GTY195961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
