DTC Check / Clear

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When the diagnosis system is changed from normal mode to check mode or vice versa, all DTCs and freeze frame data recorded in normal mode are cleared. Before changing modes, always check and make a note of DTCs and freeze frame data.

HINT:

DTCs which are stored in the TCM can be displayed on the Techstream. The Techstream can display the current, pending and permanent DTCs.
If a malfunction is detected during the current driving cycle, current and permanent DTCs are stored.
Some DTCs are not stored if the TCM does not detect the same malfunction again during a second consecutive driving cycle. However, such malfunctions, detected on only one occasion, are stored as pending DTCs.
Current and pending DTCs can be cleared by using the Techstream or by disconnecting the cable from the negative battery terminal. However, permanent DTCs cannot be cleared using either of these two methods.
After clearing current DTCs using the Techstream (or by disconnecting the cable from the negative battery terminal), permanent DTCs can be cleared when the system is determined to be normal for the relevant DTCs and then the universal trip is performed.

2 TRIP DETECTION EXAMPLES

Pending DTC	Store condition	Malfunction detected
Pending DTC	Clear condition	System determined to be normal or DTCs cleared using Techstream or Cable disconnected from negative battery terminal
Current DTC	Store condition	Malfunction detected (2nd trip)
Current DTC	Clear condition	No malfunctions in 40 driving cycles or DTCs cleared using Techstream or Cable disconnected from negative battery terminal
Permanent DTC	Store condition	Malfunction detected (2nd trip)
Permanent DTC	Clear condition	Ignition switch turned to on (IG) after no malfunction is detected in 3 consecutive driving cycles or After DTCs cleared using Techstream or cable disconnected from negative battery terminal, malfunction not detected when universal trip driving performed
MIL	ON	Malfunction detected (2nd trip)
MIL	OFF	Ignition switch turned to on (IG) after no malfunction is detected in 3 consecutive driving cycles or DTCs cleared using Techstream or Cable disconnected from negative battery terminal

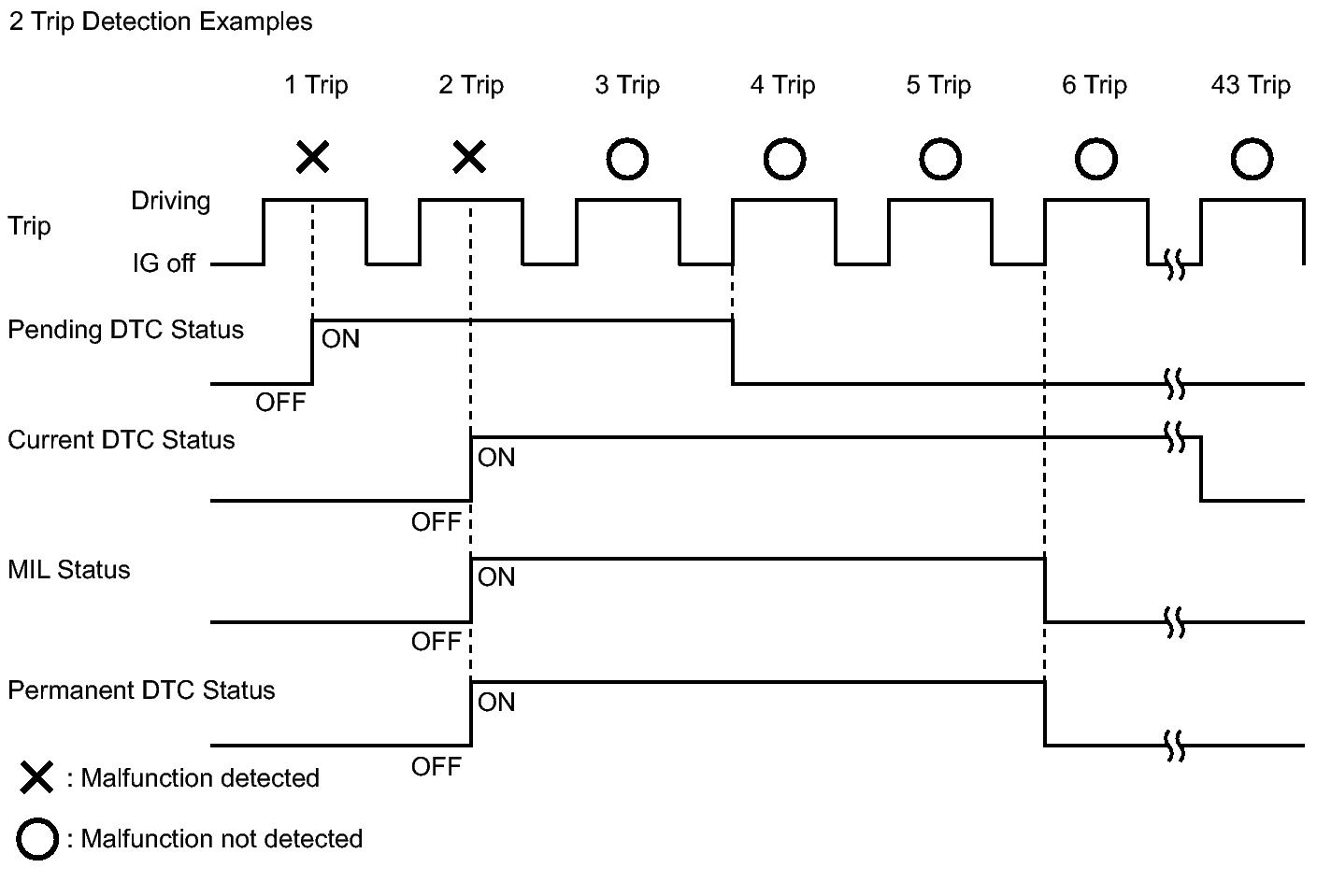

Fig 1: Identifying Trip Detection Examples Blinking Pattern (1 Of 2)

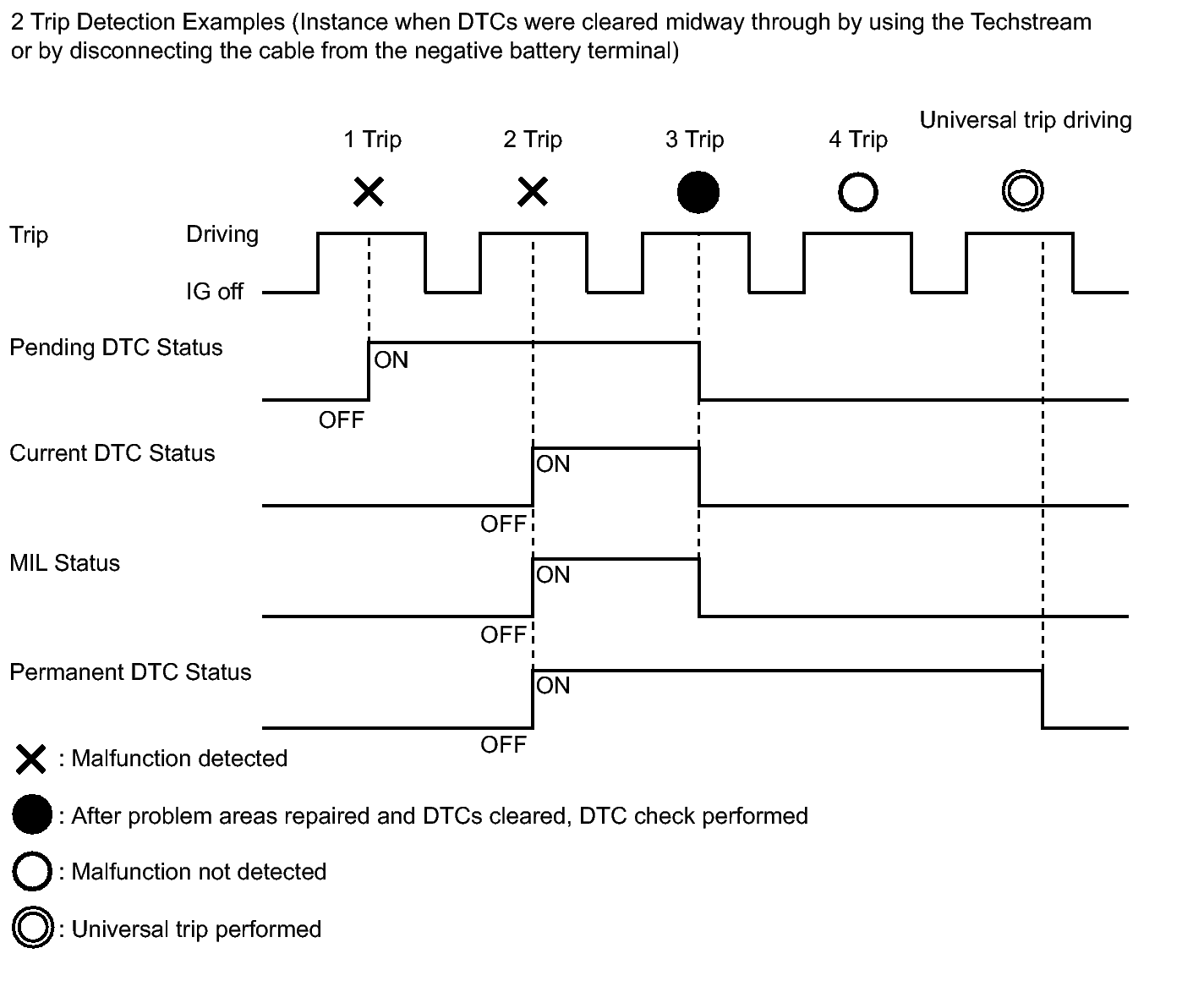

Fig 2: Identifying Trip Detection Examples Blinking Pattern (2 Of 2)

CHECK DTC
1. Connect the Techstream to the DLC3.
2. Turn the ignition switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / ECT / Trouble Codes.
5. Check the DTC(s) and freeze frame data, and then write them down.
6. Check the details of the DTC(s). Refer to DIAGNOSTIC TROUBLE CODE CHART .
CLEAR DTC (Pending and Current DTC)
1. Connect the Techstream to the DLC3.
2. Turn the ignition switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / ECT / Trouble Codes.
5. Clear the DTCs.
CLEAR PERMANENT DTC
HINT:

Even if the following procedure is not performed, permanent DTCs are cleared if no malfunction are detected during 3 consecutive driving cycles.

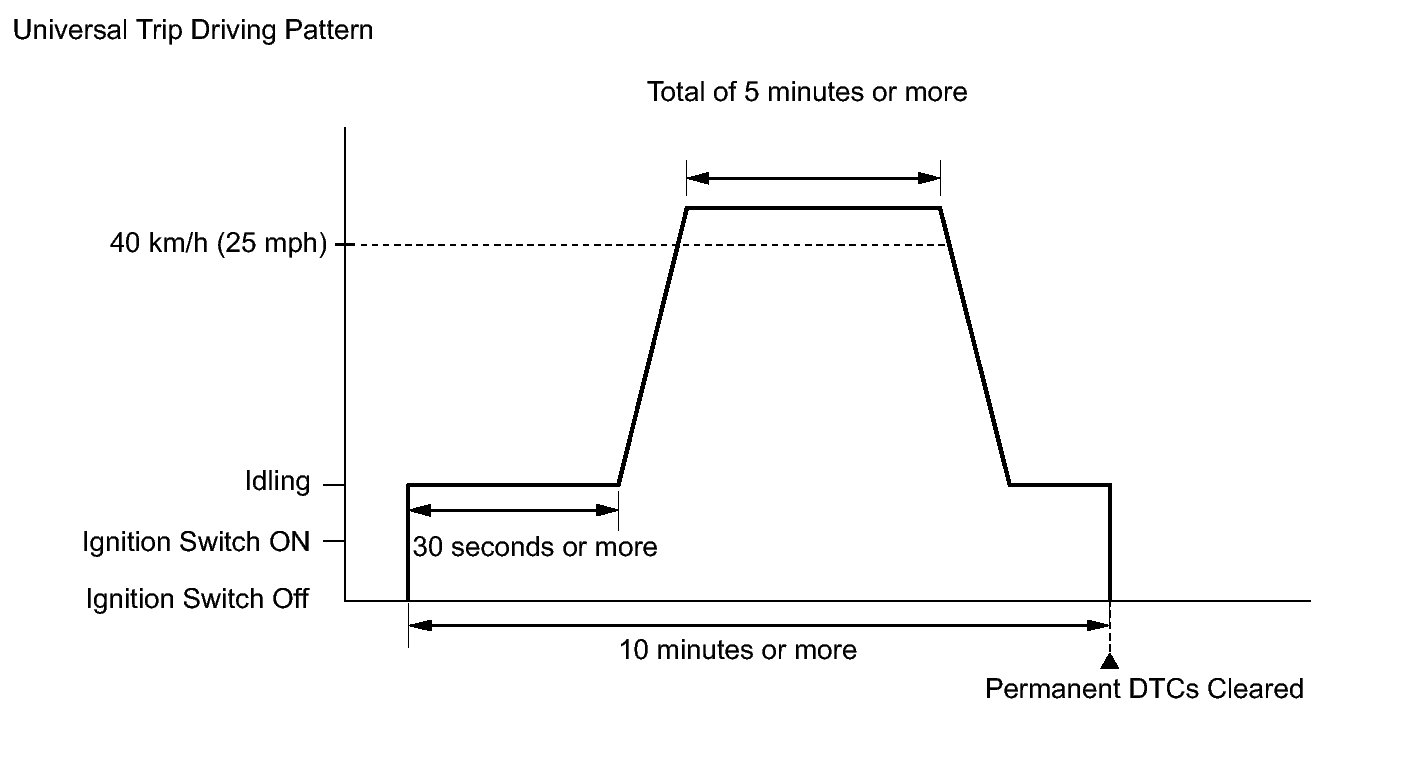

Fig 3: Identifying Universal Trip Driving Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the Techstream to the DLC3.
2. Turn the ignition switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
5. Check if permanent DTCs are stored.
  HINT:

  If permanent DTCs are not output, it is not necessary to continue this procedure.
6. Clear DTCs.
7. Perform the universal trip.
  1. Idle the engine for 30 seconds or more.
  2. Drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more.
    HINT:
    - It is possible to complete the drive pattern even if the vehicle decelerates to less than 40 km/h (25 mph) during the driving cycle provided that the vehicle is driven at 40 km/h (25 mph) or more for a total of 5 minutes.
    - When accelerating through the gears, make sure the vehicle is driven so all gears are used in order and no gears are skipped.
  3. Allow 10 minutes or more to elapse from the time the engine is started.
8. Turn the ignition switch off.
9. Wait 15 seconds.
10. Turn the ignition switch on (IG).
11. Enter the following menus: Powertrain / ECT / Trouble Codes.
12. Check that the permanent DTCs have been cleared.
  HINT:
  - If the permanent DTCs have not been cleared, perform the universal trip again.
  - The permanent DTCs are cleared when the universal trip is completed.
