Section 27 (Starting System (Service Information)): Starter: Components: Illustration
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

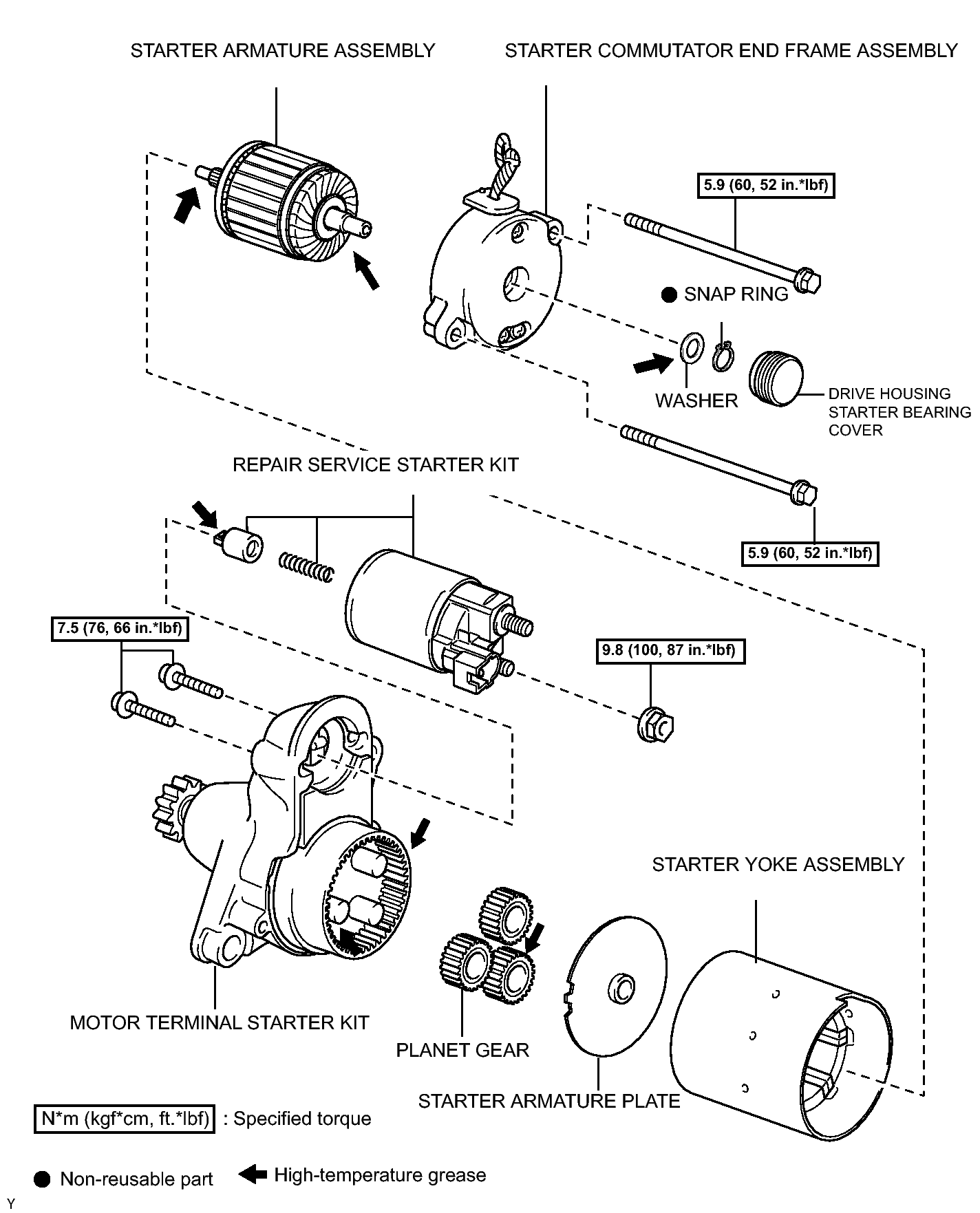

Fig 1: Exploded View Of Starter Replacement Components With Torque Specifications
