System Diagram

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

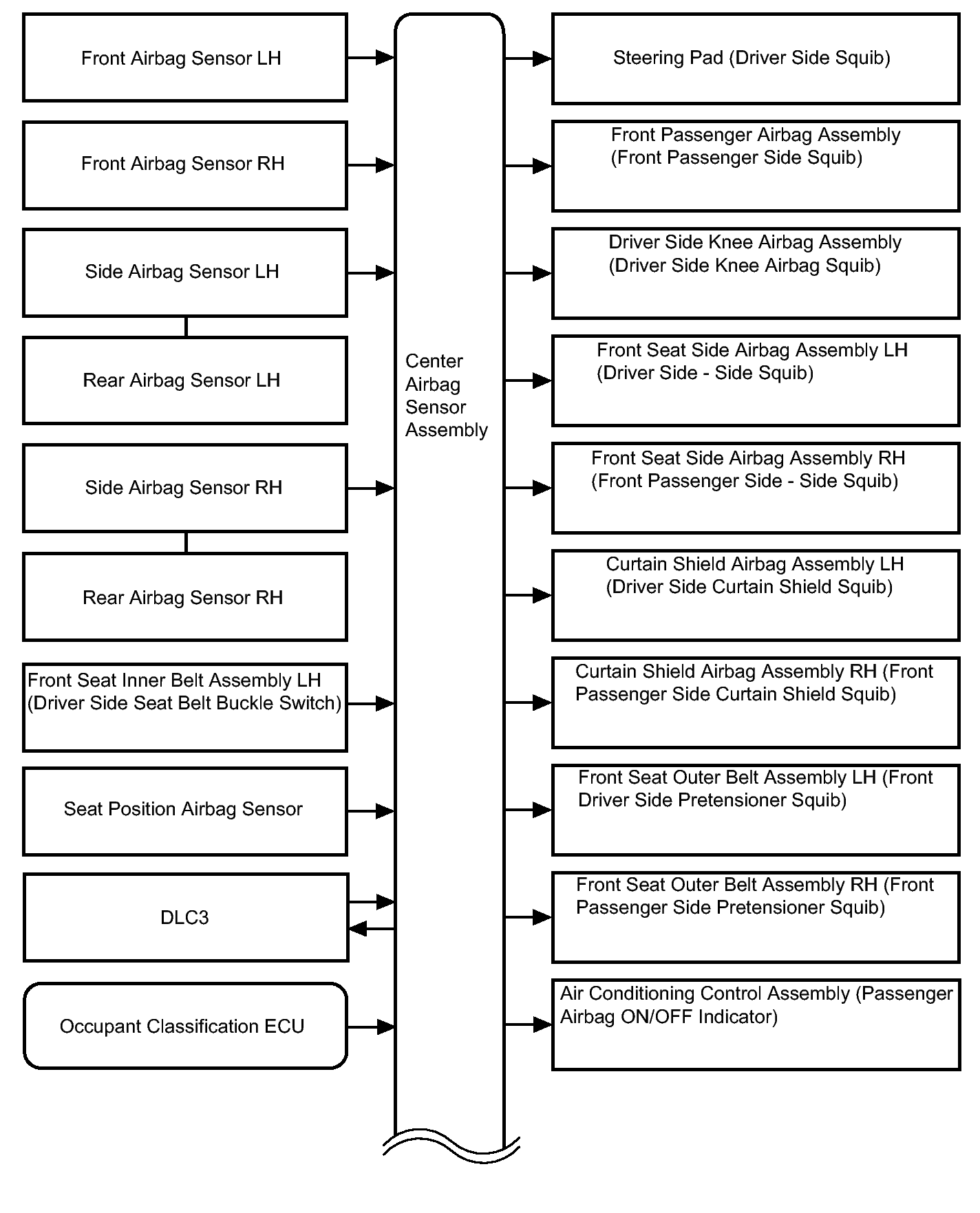

Fig 1: Supplemental Restraint System Diagram (1 Of 2)
GTY305121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

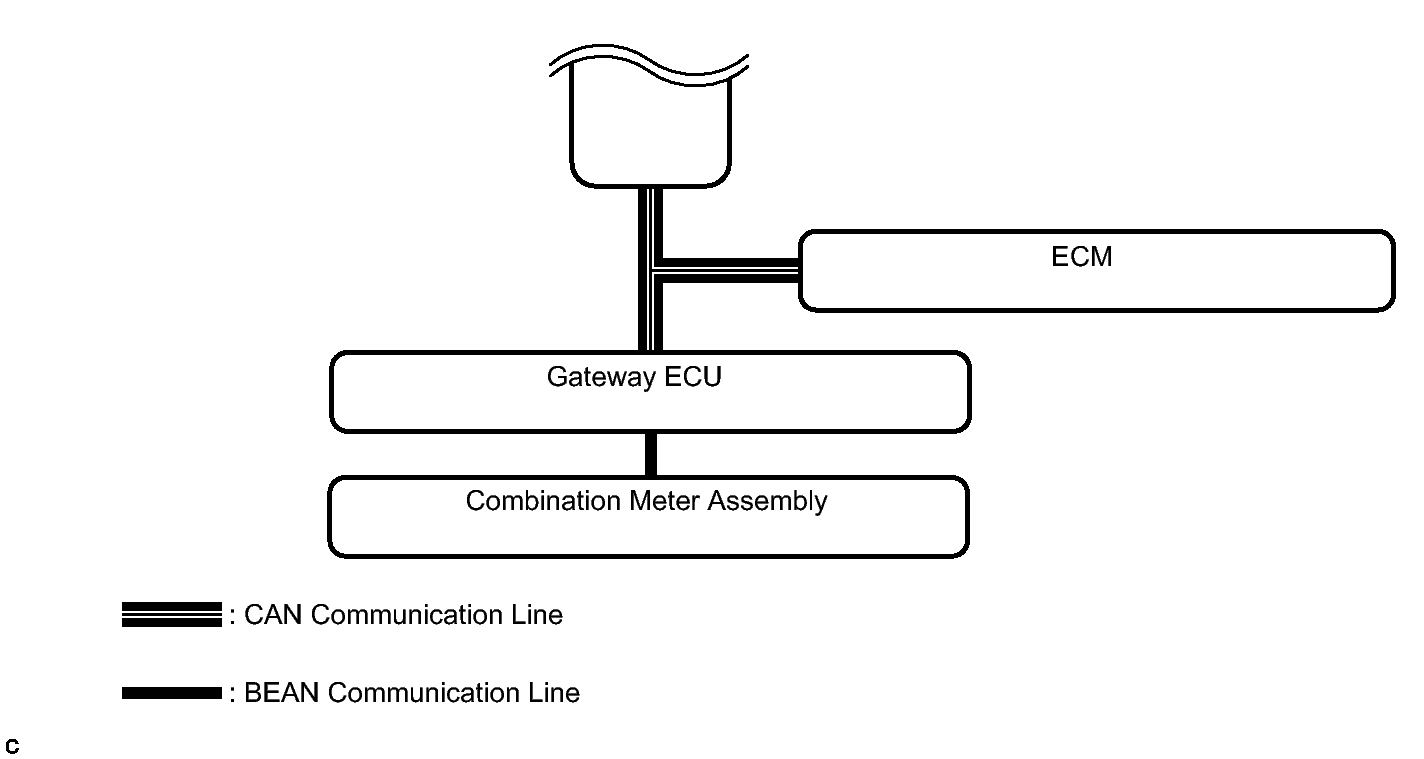

Fig 2: Supplemental Restraint System Diagram (2 Of 2)
GTY297246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU
(Transmitter)		 Receiving ECU Signal Communication Method
Center Airbag Sensor Assembly ECM Crash detection signal CAN
Center Airbag Sensor Assembly Combination Meter Assembly
  • SRS warning light ON demand signal
  • Driver seat buckle switch signal
  • Passenger seat buckle switch signal
  • Passenger seat occupant detection signal
  • Diagnosis signal (DTC)
 CAN - BEAN
Combination Meter Assembly Center Airbag Sensor Assembly Vehicle speed signal BEAN - CAN
ECM Center Airbag Sensor Assembly
  • Engine speed signal
  • Accelerator pedal angle information
  • Accelerator pedal angle signal
  • Shift position signal
  • Test mode signal
  • Stop signal
 CAN
