Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT AXLE LH HUB BOLT
1. Install a washer and nut to a new front axle LH hub bolt as shown in the illustration.

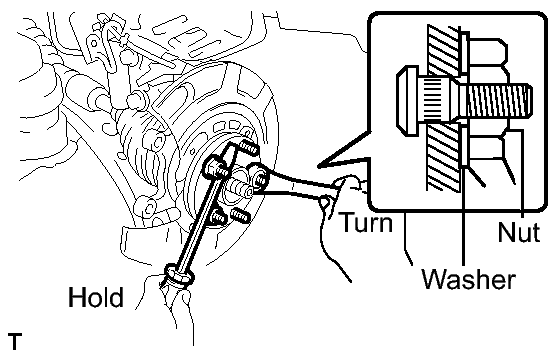

  Fig 1: Installing Front Axle LH Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a screwdriver or an equivalent hold the front axle, install a new hub bolt by tightening the nut.
INSTALL FRONT DISC
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH Refer to 12
INSTALL FRONT WHEEL
Torque: 103 N*m (1.050 kgf*cm, 76 ft.*lbf)
